SGM8046 Datasheet, Amplifier, SG Micro

SGM8046 Features

  • Amplifier The SGM8046 operates with a single supply voltage as low as 1.4V, while drawing less than 670nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-t

PDF File Details

Part number:

SGM8046

Manufacturer:

SG Micro

File Size:

330.94kb

Download:

📄 Datasheet

Description:

Dual rail-to-rail input/output operational amplifier.   FEATURES The SGM8046 operates with a single supply voltage as low as 1.4V, while drawing less than 670nA (TYP) of quiescent curre

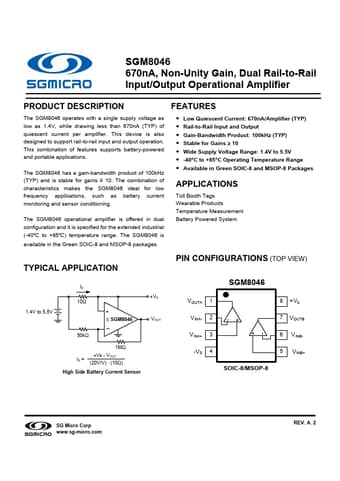

Datasheet Preview: SGM8046 📥 Download PDF (330.94kb)
Page 2 of SGM8046 Page 3 of SGM8046

SGM8046 Application

  • Applications The SGM8046 has a gain-bandwidth product of 100kHz (TYP) and is stable for gains ≥ 10. The combination of characteristics makes the SG
