SGM8903

Capless 3Vrms Line Driver

SG Micro

SGM8903 Features

* Capless Structure Eliminates Pop/Clicks Eliminates Output DC-Blocking Capacitors Provides Flat Frequency Response from DC to 20kHz

* Low Noise and THD Typical SNR = 107dB Typical VN = 8μVrms Typical THD+N = 0.001% (f = 1

SGM8903 General Description

The SGM8903 is a 3Vrms pop/click-free stereo line driver designed to allow the removal of the output DC-blocking capacitors for reduced component count and cost. The device is ideal for single supply electronics where size and cost are critical design parameters. The SGM8903 is capable of driving 3V.

SGM8903 Datasheet (381.17 KB)

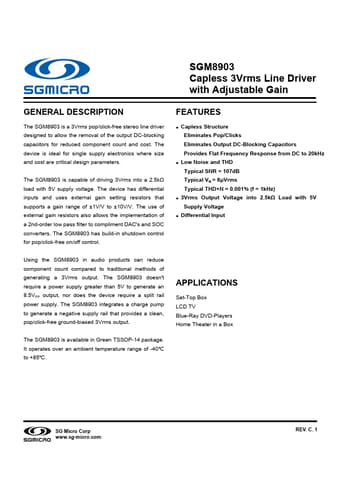

SGM8903 Datasheet Preview — Preview of SGM8903 PDF

Datasheet Details

Part number:

SGM8903

Manufacturer:

SG Micro

File Size:

381.17 KB

Description:

Capless 3vrms line driver.
