LINEAR INTEGRATED CIRCUIT
12W Hi-Fi AUDIO AMPLIFIER

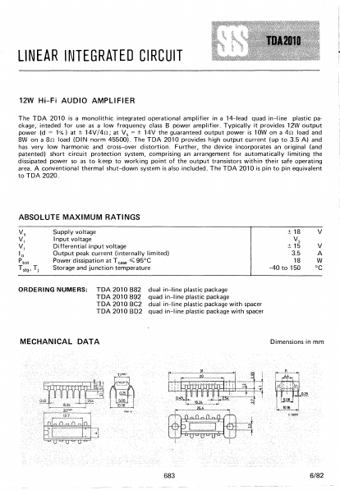

The TDA 2010 is a monolithic integrated operational amplifier in a 14-lead quad in-line plastic package, inteded for use as a low frequency class B power amplifier. Typically it provides 12W output power (d = 1% ) at ± 14V/4n; at Vs = ± 14V the guaranteed output power is 10W on a 4n load and 8W on a 8n load (DIN norm 45500). The TDA 2010 provides high output current (up to 3.5 A) and has very low harmonic and cross-over distortion. Further, the device incorporates an original (and patented) short circuit protection system, comprising an arrangement for automatically limiting the dissipated power so as to keep to working point of the output transistors within their safe operating area.
TDA2010 Datasheet
