SD1463 RF & MICROWAVE TRANSISTORS

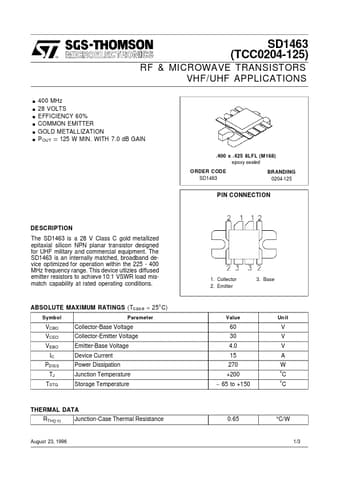

SD1463 (TCC0204-125) RF & MICROWAVE TRANSISTORS VHF/UHF APPLICATIONS 400 MHz 28 VOLTS EFFICIENCY 60% COMMON EMITTER GOLD METALLIZATION POUT = 125 W MIN. WITH 7.0 dB GAIN .400 x .425 8LFL (M168) epoxy sealed O RDER CODE SD1463 BRANDING 0204-125 PIN CONNECTION DE SC RI P TI O N The SD1463 is a 28 V Class C gold metallized epitaxial silicon NPN planar transistor designed for UHF military and commercial equipment. The SD1463 is an internally matched, broadband device optimized for operation wit.

SD1463-SGS-THOMSON.pdf

This datasheet PDF includes multiple part numbers: SD1463, SD1463-SGS. Please refer to the document for exact specifications by model.
SD1463 Datasheet Preview Page 2 SD1463 Datasheet Preview Page 3

Datasheet Details

Part number:

SD1463, SD1463-SGS

Manufacturer:

SGS-THOMSON

File Size:

35.38 KB

Description:

Rf & microwave transistors.

Note:

This datasheet PDF includes multiple part numbers: SD1463, SD1463-SGS.
Please refer to the document for exact specifications by model.
