L7805CT 3-TERMINAL POSITIVE VOLTAGE REGULATORS

LINEAR INTEGRATED CIRCUITS 3-TERMINAL POSITIVE VOLTAGE REGULATORS OUTPUT CURRENT UP TO 1.5A OUTPUT VOLTAGES OF 5; 6; 8; 12; 15; 18; 20; 24V THERMAL OVERLOAD PROTECTION SHORT CIRCUIT PROTECTION OUTPUT TRANSISTOR SOA PROTECTION The L7800 series of three-terminal positive regulators is available in TO-220 and TO-3 packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on.

L7805CT, L7805 Datasheet

This datasheet PDF includes multiple part numbers: L7805CT, L7805. Please refer to the document for exact specifications by model.

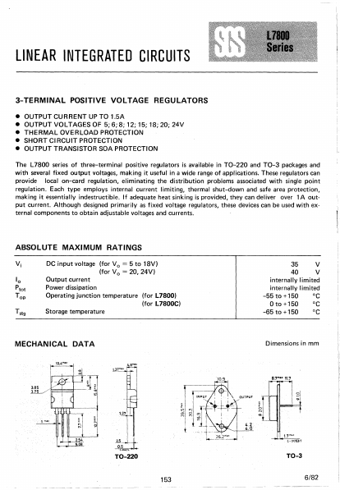

L7805CT Datasheet Preview Page 2 L7805CT Datasheet Preview Page 3

Datasheet Details

Part number:

L7805CT, L7805

Manufacturer:

SGS

File Size:

671.16 KB

Description:

3-terminal positive voltage regulators.

This datasheet PDF includes multiple part numbers: L7805CT, L7805. Please refer to the document for exact specifications by model.
