M1130 REMOTE CONTROL RECEIVER

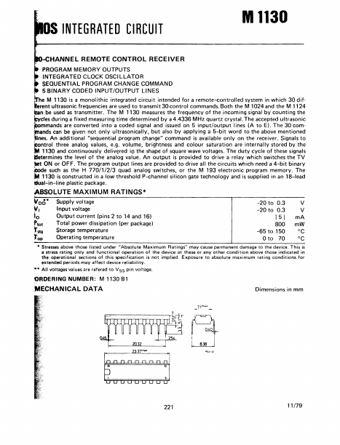

INTEGRATED CIRCUIT M 1130 HANNEL REMOTE CONTROL RECEIVER PROGRAM MEMORY OUTPUTS INTEGRATED CLOCK OSCILLATOR SEQUENTIAL PROGRAM CHANGE COMMAND 5 BINARY CODED INPUT/OUTPUT LINES M 1130 is a monolithic integrated circuit intended for a remote-controlled system in which 30 difultrasonic frequencies are used to transmit 30 control commands. Both the M 1024 and the M 1124 used as transmitter. The M 1130 measures the frequency of the incoming signal by counting the during a fixed measuring time det.
