M706, 16-STAGE COUNTER

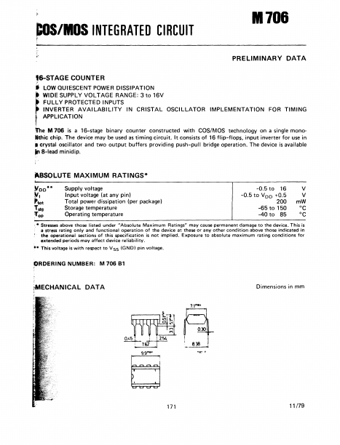

I:OS/MOS INTEGRATED CIRCUIT I M706 ,Ie-STAGE COUNTER PRELIMINARY DATA LOW QUIESCENT POWER DISSIPATION ~.~ WIDE SUPPLY VOLTAGE RANGE: 3 to 16V FULLY PROTECTED INPUTS t INVERTER AVAILABILITY IN CRISTAL OSCILLATOR IMPLEMENTATION FOR TIMING APPLICAnON irhe M 706 is a 16-stage binary counter constructed with COS/MOS technology on a single mono lithic chip.

The device may be used as timing circuit.

It consists of 16 flip-flop~.

input inverter for use in crystal oscillator and two o
