EC4-20-NO2 Datasheet - SGX

EC4-20-NO2 Nitrogen Dioxide Electrochemical Sensor

EC4-20-NO2 Nitrogen Dioxide Electrochemical Sensor PERFORMANCE Range 0 - 20 ppm Maximum overload 250 ppm Sensitivity (see note) 450 - 750 nA/ppm NO2 Zero in air at 20 °C<0.9 ppm NO2 Resolution0.1 ppm NO2 Linearity linear across range Response time, t90 <35 s Long-term output drift<2% signal/month Warranty 2 years Note: This output current is negative. This is because the sensor reaction is a reduction of the target gas. OPERATING CONDITIONS Temperature range -20 to +50 °C Operating humidit.

EC4-20-NO2-SGX.pdf

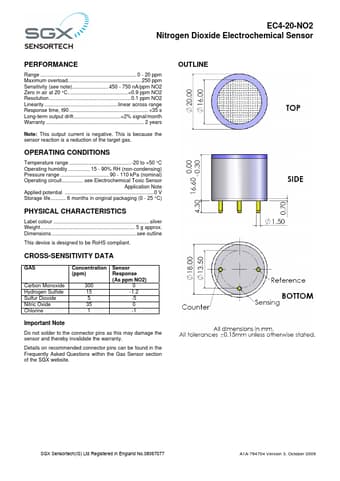

Preview of EC4-20-NO2 PDF
EC4-20-NO2 Datasheet Preview Page 2

Datasheet Details

Part number:

EC4-20-NO2

Manufacturer:

SGX

File Size:

240.74 KB

Description:

Nitrogen dioxide electrochemical sensor.
