BL59A12 Datasheet - SHANGHAI BELLING

BL59A12 - PHOTOELECTRIC SMOKE DETECTOR

1.1 Basic function: BL59A12 (BL59S12) is a CMOS LSI used for smoke detection.

Ultra-low power analog and digital circuits are contained in it.

Combined with an IR photoelectric chamber, this IC is used to detect smoke through receiving light scattered by tiny smoke particles going into the chamber.

BL59A12_SHANGHAIBELLING.pdf

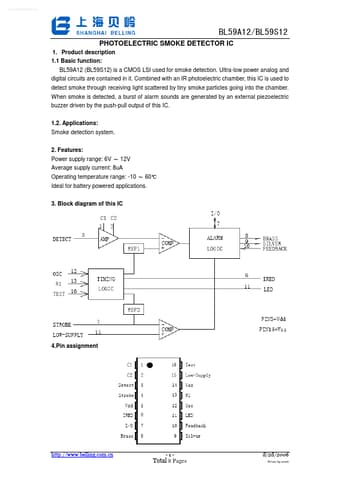

Preview of BL59A12 PDF
BL59A12 Datasheet Preview Page 2 BL59A12 Datasheet Preview Page 3

Datasheet Details

Part number:

BL59A12

Manufacturer:

SHANGHAI BELLING

File Size:

297.41 KB

Description:

Photoelectric smoke detector.
