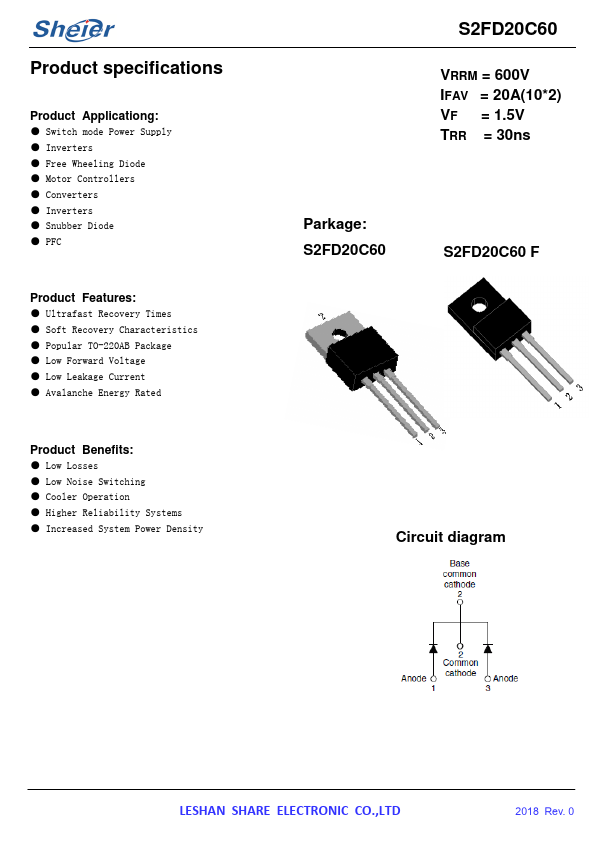

S2FD20C60
Features
:
- Ultrafast Recovery Times
- Soft Recovery Characteristics
- Popular TO-220AB Package
- Low Forward Voltage
- Low Leakage Current
- Avalanche Energy Rated
Product Benefits:
- Low Losses
- Low Noise Switching
- Cooler Operation
- Higher Reliability Systems
- Increased System Power Density
S2FD20C60 F
VRRM = 600V IFAV = 20A(10- 2) VF = 1.5V TRR = 30ns
Parkage: S2FD20C60
S2FD20C60 F
Circuit diagram
LESHAN SHARE ELECTRONIC CO.,LTD
2018 Rev. 0

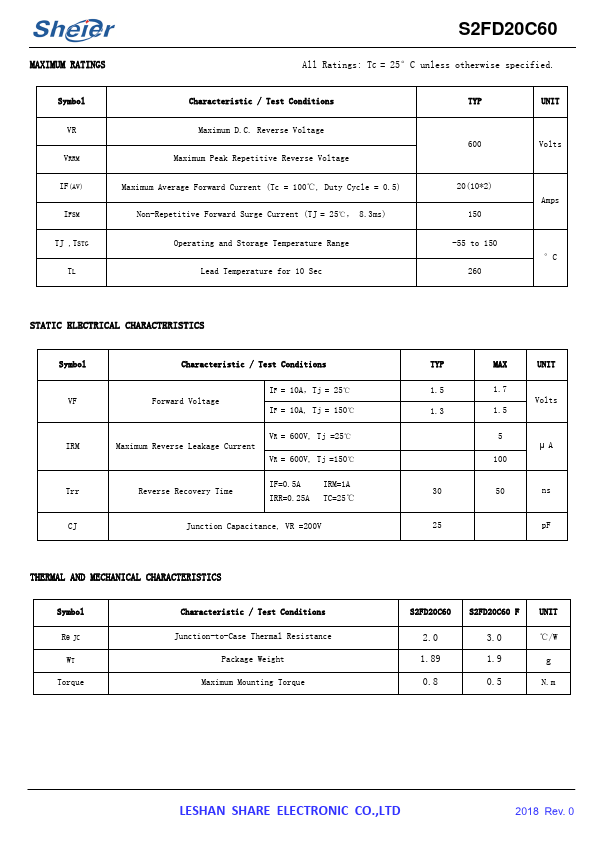

MAXIMUM RATINGS
S2FD20C60 F
All Ratings: TC = 25°C unless otherwise specified.
Symbol VR VRRM
IF(AV) IFSM TJ ,TSTG TL
Characteristic / Test Conditions Maximum D.C. Reverse Voltage
Maximum Peak Repetitive Reverse Voltage Maximum Average Forward Current (Tc = 100℃, Duty Cycle = 0.5)
Non-Repetitive Forward Surge Current (TJ = 25℃， 8.3ms) Operating and Storage Temperature Range Lead Temperature for 10 Sec
20(10- 2) 150
-55 to 150 260
UNIT Volts Amps °C
STATIC ELECTRICAL CHARACTERISTICS
Symbol VF IRM Trr CJ
Characteristic /...
