S2FD30C30
Features
:
- Ultrafast Recovery Times
- Soft Recovery Characteristics
- Popular TO-220AB Package
- Low Forward Voltage
- Low Leakage Current
- Avalanche Energy Rated
Product Benefits:
- Low Losses
- Low Noise Switching
- Cooler Operation
- Higher Reliability Systems
- Increased System Power Density
VRRM = 300V IFAV = 30A(15A- 2) VF = 1.1V TRR = 25ns
Parkage:
Circuit diagram
1- Anode 3- Anode 2- Cathode
Back of Case
- Cathode
LESHAN SHARE ELECTRONIC CO.,LTD
2020 Rev. 0

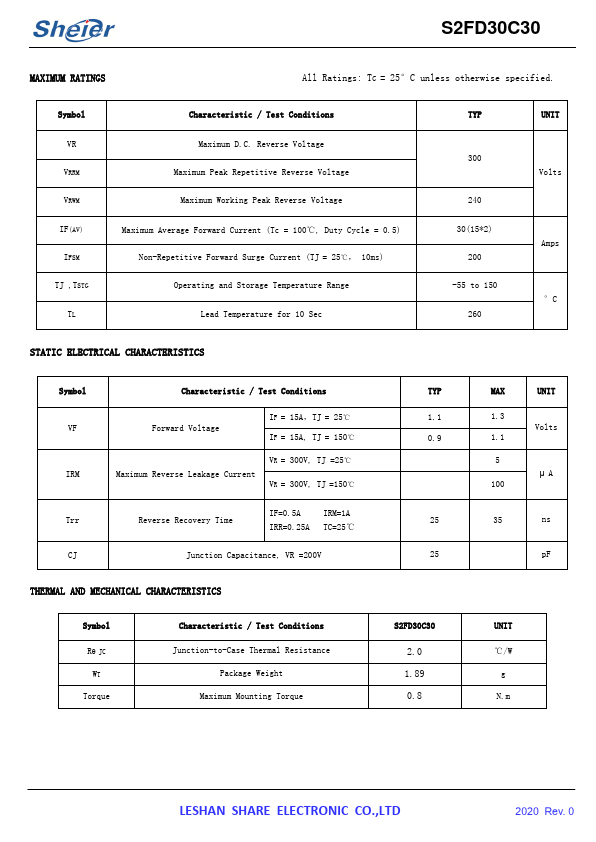

MAXIMUM RATINGS
All Ratings: TC = 25°C unless otherwise specified.
Symbol VR VRRM VRWM
IF(AV) IFSM TJ ,TSTG TL
Characteristic / Test Conditions Maximum D.C. Reverse Voltage
Maximum Peak Repetitive Reverse Voltage Maximum Working Peak Reverse Voltage
Maximum Average Forward Current (Tc = 100℃, Duty Cycle = 0.5) Non-Repetitive Forward Surge Current (TJ = 25℃， 10ms) Operating and Storage Temperature Range Lead Temperature for 10 Sec
240 30(15- 2)
200 -55 to 150
UNIT Volts...
