PC3SF21YVZ, DIP 6pin Phototriac Coupler for triggering

PC3SF21YVZ Series PC3SF21YVZ Series ∗ VDRM : 600V, Reinforced insulation type Zero cross type DIP 6pin Phototriac Coupler for triggering Non-zero c.
PC3SF21YVZ Series reinforced insulation type Phototriac Coupler include an infrared emitting diode (IRED) optically coupled to an output Phototriac.

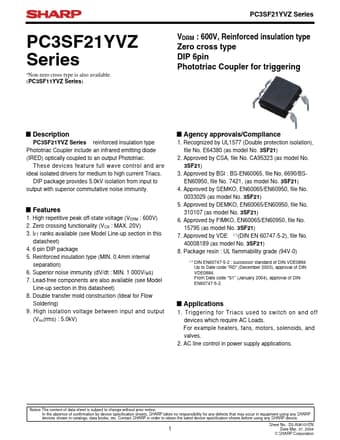

datasheet Preview Page 1 from Datasheet4u.com

PC3SF21YVZ-SHARP.pdf

PC3SF21YVZ Datasheet Preview — Preview of PC3SF21YVZ PDF

Datasheet Details

Part number:

PC3SF21YVZ

Manufacturer:

SHARP

File Size:

320.94 KB

Description:

DIP 6pin Phototriac Coupler for triggering

Features

* 1. High repetitive peak off-state voltage (VDRM : 600V) 2. Zero crossing functionality (VOX : MAX. 20V) 3. IFT ranks available (see Model Line-up section in this datasheet) 4. 6 pin DIP package 5. Reinforced insulation type (MIN. 0.4mm internal separation) 6. Superior noise immunity (dV/dt : MIN. 1

Applications

* 1. Triggering for Triacs used to switch on and off devices which require AC Loads. For example heaters, fans, motors, solenoids, and valves. 2. AC line control in power supply applications. Notice The content of data sheet is subject to change without prior notice. In the absence of confirmation by
