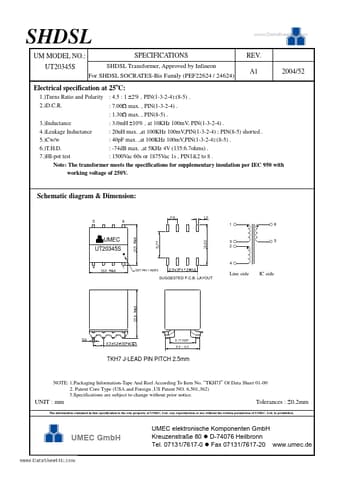

SHDSL UM MODEL NO.: UT20345S SPECIFICATIONS SHDSL Transformer, Approved by Infineon For SHDSL SOCRATES-Bis Family (PEF22624 / 24624) www.DataSheet4U.com REV. A1 2004/52 Electrical specification at 25oC: 1.)Turns Ratio and Polarity 2.)D.C.R. 3.)Inductance : 4.5 : 1  2% , PIN(1-3-2-4):(8-5) . : 7.00 max. , PIN(1-3-2-4) . : 1.30 max. , PIN(8-5) . : 3.0mH  10% , at 10KHz 100mV, PIN(1-3-2-4) . 4.)Leakage Inductance : 20uH max. ,at 100KHz 100mV,PIN(1-3-2-4) ; PIN(8-5) shorted . 5.)Cw/w : 40pF m.
