SZT560A, NPN Low Saturation Transistor

SZT560A NPN Low Saturation Transistor The devices are designed with high current gain and low saturation voltage with collector currents up to 3A cont.

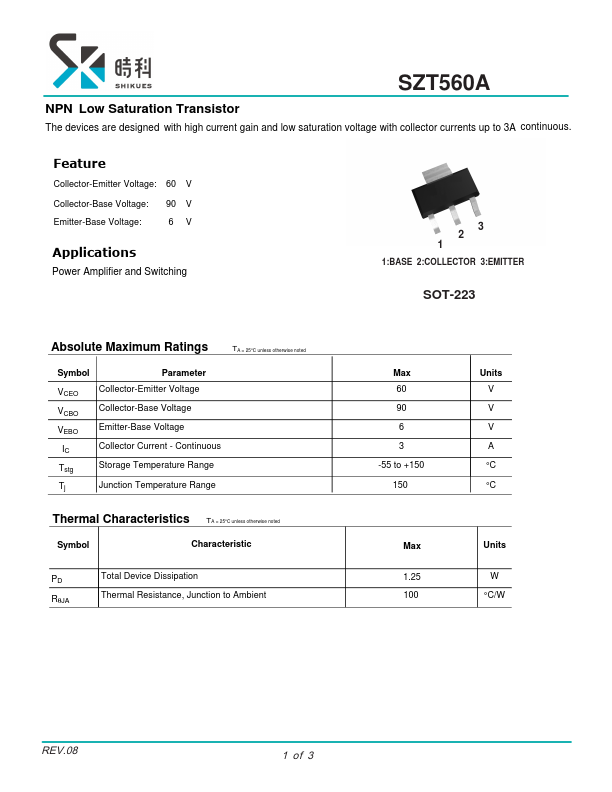

datasheet Preview Page 1 from Datasheet4u.com

SZT560A-SHIKUES.pdf

SZT560A Datasheet Preview — Preview of SZT560A PDF

Datasheet Details

Part number:

SZT560A

Manufacturer:

SHIKUES

File Size:

818.47 KB

Description:

NPN Low Saturation Transistor

Applications

* Power Amplifier and Switching 3 2 1 1:BASE 2:COLLECTOR 3:EMITTER SOT-223 Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter VCEO Collector-Emitter Voltage VCBO VEBO Collector-Base Voltage Emitter-Base Voltage IC Collector Current - Continuous Tstg Storage Temperat
