QX2303 Datasheet - SHIWEI

PFM Step-Up DC-DC Converter

QX2303 Features

* y 260KHz Maximum Operation Frequency y 2.0V to 5.0V Output Voltage With 0.1V Step y Low Start-up Voltage: 0.8V at 1mA y ±2.5% Output Voltage Accuracy y Up to 87% Efficiency y Output current: 300mA at 2.5V input, 3.3V output y Low Ripple a

QX2303 General Description

The QX2303 Series are PFM step-up DC-DC converters with very low ripple noise due to the high operation frequency. The maximum operation frequency is 260KHz. Only three components are required to realize the conversion from the battery voltage to a selected output voltage. A driver pin (EXT) is prov.

QX2303 Datasheet (180.64 KB)

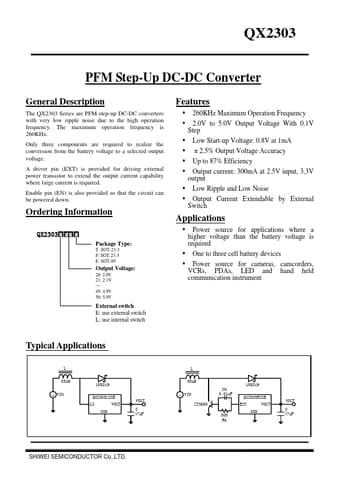

QX2303 Datasheet Preview — Preview of QX2303 PDF

Datasheet Details

Part number:

QX2303

Manufacturer:

SHIWEI

File Size:

180.64 KB

Description:

Pfm step-up dc-dc converter.
