S80N10R Datasheet, Mosfet, SI-TECH

S80N10R Features

  • Mosfet
  • VDS=80V,ID=100A Rds(on)(typ)=6.3m@Vgs=10V
  • 100% Avalanche Tested
  • 100% Rg Tested
  • Lead-Free (RoHS Compliant) S80N10R/S/RN/RP N-Channel Power MOSFE

PDF File Details

Part number:

S80N10R

Manufacturer:

SI-TECH

File Size:

1.80MB

Download:

📄 Datasheet

Description:

N-channel mosfet. D D G S Package Package Code G D S TO-220 R Package Marking G S TO-263 S G D S TO-220N RN G D S TO-220P RP Company Part No. an

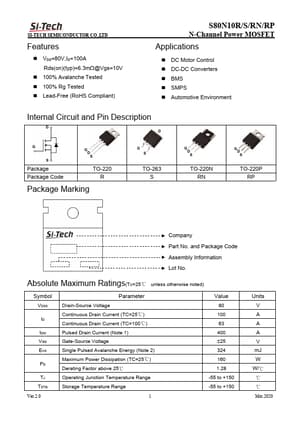

Datasheet Preview: S80N10R 📥 Download PDF (1.80MB)
Page 2 of S80N10R Page 3 of S80N10R

S80N10R Application

  • Applications
  • DC Motor Control
  • DC-DC Converters
  • BMS
  • SMPS
  • Automotive Environment Internal Circuit a
