S90N055R, S90N055R-SI N-Channel MOSFET

S90N055R Description

SI-TECH SEMICONDUCTOR CO.,LTD S90N055R/S N-Channel MOSFET .
This Power MOSFET is produced using Si-Tech’s advanced Split-Gate MOS Technology.

S90N055R Features

* 90V,130A,Rds(on)(typ)=5.5mΩ @Vgs=10V
* High Ruggedness
* Fast Switching
* 100% Avalanche Tested
* Improved dv/dt Capability

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S90N055R, S90N055R-SI. Please refer to the document for exact specifications by model.

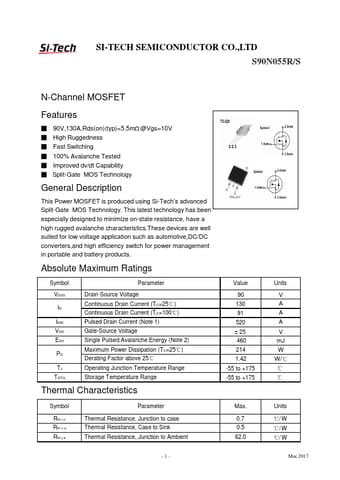

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S90N055R, S90N055R-SI
Manufacturer
SI-TECH
File Size
455.00 KB
Datasheet
S90N055R-SI-TECH.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: S90N055R, S90N055R-SI.
Please refer to the document for exact specifications by model.
