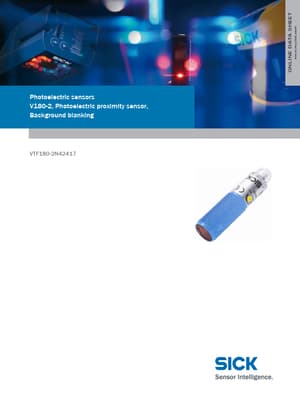

VTF180-2N42417 - Photoelectric sensors

Datasheet Details

Sensor/detection principle: Photoelectric proximity sensor, Background blanking Housing design (light emission): Cylindrical, straight Housing length: 69.8 mm Thread diameter (housing): M18 x 1 Optical axis: Sensing range max. : Sensing range: Axial 1 mm 140 mm 1) 1 mm 100 mm 2) Type of light: Light source: Visible red light LED 3) Wave length: 645 nm Focus: Focused, focus approx. 7 mm at 60 mm Adjustment: Potentiometer, 270 ° Light spot size (distance): Ø 8 mm (100 mm) 1).
