STK18TA8 - nvTime Event Data Recorder Serial Peripheral Interface nvSRAM QuantumTrap CMOS Nonvolatile Static RAM

Datasheet Summary

Description

The Simtek STK18TA8 combines a 1 Mbit nonvolatile static RAM and a full-featured real-time clock, in a reliable, monolithic integrated circuit.

A Serial Peripheral Interface (SPI) makes system integration simple.

Features

  • Data integrity of Simtek nvSRAM Combined with Full-Featured Real-Time Clock.
  • 40 MHZ SPI interface with compatible commands to industry standards 1 Mbit SPI EEPROMs.
  • STORE to QuantumTrap™ Nonvolatile Elements is Initiated by Software , device pin or AutoStore™ on Power Down.
  • RECALL to SRAM Initiated by Software or Power Restore.
  • Unlimited READ and WRITE and RECALL Cycles.
  • Watchdog Timer.
  • Clock Alarm with programmable Interrupts.

📥 Download Datasheet

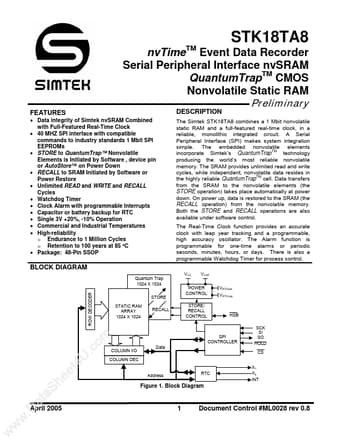

Datasheet preview – STK18TA8

Datasheet Details

Part number STK18TA8
Manufacturer SIMTEK
File Size 339.47 KB
Description nvTime Event Data Recorder Serial Peripheral Interface nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
Datasheet download datasheet STK18TA8 Datasheet
Additional preview pages of the STK18TA8 datasheet.
