SH1107 - Dot Matrix OLED/PLED Segment/Common Driver

Datasheet Summary

Description

SH1107 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system.

SH1107 consists of 128 segments, 128 commons that can support a maximum display resolution of 128 X 128.

It is designed for Common Cathode type OLED panel.

Features

  • Support maximum 128 X 128 dot matrix panel Embedded 128 X 128 bits SRAM Operating voltage: - Logic voltage supply: VDD = 1.65V - 3.5V - DC-DC voltage supply: AVDD = 2.4V -3.5V - OLED Operating voltage supply: Vpp=7.0V - 16.5V Maximum segment output current: 500µA Maximum common sink current: 64mA 8-bit 6800-series parallel interface, 8-bit 8080-series parallel interface, and 3-wire & 4-wire serial peripheral interface. 400KHz fast I2C bus interface Programmable frame frequency and multiplexing r.

📥 Download Datasheet

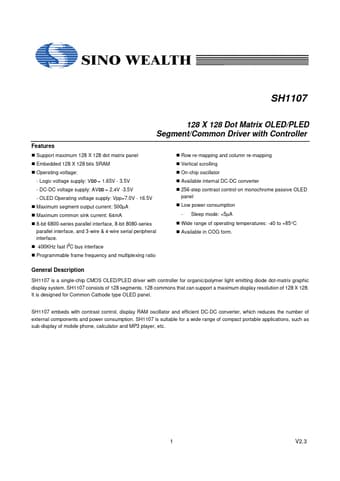

Datasheet preview – SH1107

Datasheet Details

Part number SH1107
Manufacturer SINO WEALTH
File Size 527.84 KB
Description Dot Matrix OLED/PLED Segment/Common Driver
Datasheet download datasheet SH1107 Datasheet
Additional preview pages of the SH1107 datasheet.

📁 Similar Datasheet

Other Datasheets by SINO WEALTH
  • SH1101A - 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver
  • SH1106 - 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver
  • SH1122 - 256 x 64 16 Grayscale Dot Matrix OLED/PLED Driver

Full PDF Text Transcription

Click to expand full text
SH1107 128 X 128 Dot Matrix OLED/PLED Segment/Common Driver with Controller Features Support maximum 128 X 128 dot matrix panel Embedded 128 X 128 bits SRAM Operating voltage: - Logic voltage supply: VDD = 1.65V - 3.5V - DC-DC voltage supply: AVDD = 2.4V -3.5V - OLED Operating voltage supply: Vpp=7.0V - 16.5V Maximum segment output current: 500µA Maximum common sink current: 64mA 8-bit 6800-series parallel interface, 8-bit 8080-series parallel interface, and 3-wire & 4-wire serial peripheral interface.
