SH79F1618 - Enhanced 8051 Microcontroller

Product Overview

SINO WEALTH

Datasheet Details

Part number	SH79F1618
Manufacturer	SINO WEALTH
File Size	1.02 MB
Description	Enhanced 8051 Microcontroller
Datasheet	SH79F1618 Datasheet

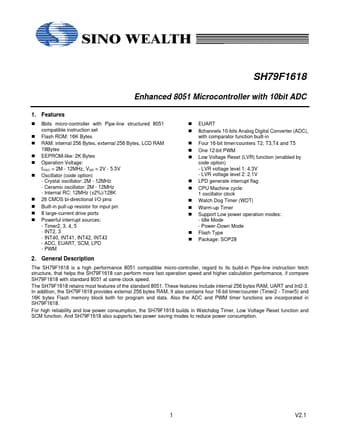

Additional preview pages of the SH79F1618 datasheet.

Product details

Description

The SH79F1618 is a high performance 8051 compatible micro-controller, regard to its build-in Pipe-line instruction fetch structure, that helps the SH79F1618 can perform more fast operation speed and higher calculation performance, if compare SH79F1618 with standard 8051 at same clock speed.

Features

8bits micro-controller with Pipe-line structured 8051 compatible instruction set.
Flash ROM: 16K Bytes.
RAM: internal 256 Bytes, external 256 Bytes, LCD RAM 19Bytes.
EEPROM-like: 2K Bytes.
Operation Voltage: fOSC = 2M - 12MHz, VDD = 2V - 5.5V.
Oscillator (code option) - Crystal oscillator: 2M - 12MHz - Ceramic oscillator: 2M - 12MHz - Internal RC: 12MHz (±2%)/128K.
26 CMOS bi-directional I/O pins.
Built-in pull-up resistor for input pin.
8 large-cur.
