SH79F1619 - Enhanced 8051 Microcontroller

SH79F1619 Description

SH79F1619 Enhanced 8051 Microcontroller with 10bit ADC 1..
The SH79F1619 is a high performance 8051 compatible micro-controller, regard to its build-in Pipe-line instruction fetch structure, that helps the SH.

SH79F1619 Features

* 8bits micro-controller with Pipe-line structured 8051 compatible instruction set
* Flash ROM: 16K Bytes
* RAM: internal 256 Bytes, external 256 Bytes, LCD RAM 19Bytes
* EEPROM-like: 1K Bytes
* Operation Voltage: fOSC = 32.768kHz - 12.3MHz, VDD = 2V - 5.5V
* Oscillator (cod

📥 Download Datasheet

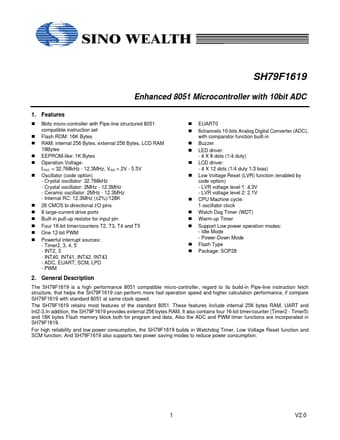

Preview of SH79F1619 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SH79F1619
Manufacturer
SINO WEALTH
File Size
1.14 MB
Datasheet
SH79F1619-SINOWEALTH.pdf
Description
Enhanced 8051 Microcontroller
