SCS040001-V01 - SMART DISPLAY MODULE

Product Overview

Datasheet Details

Part number	SCS040001-V01
Manufacturer	SINOCRYSTAL
File Size	381.17 KB
Description	SMART DISPLAY MODULE
Datasheet	SCS040001-V01 Datasheet
Additional preview pages of the SCS040001-V01 datasheet.

Product details

Description

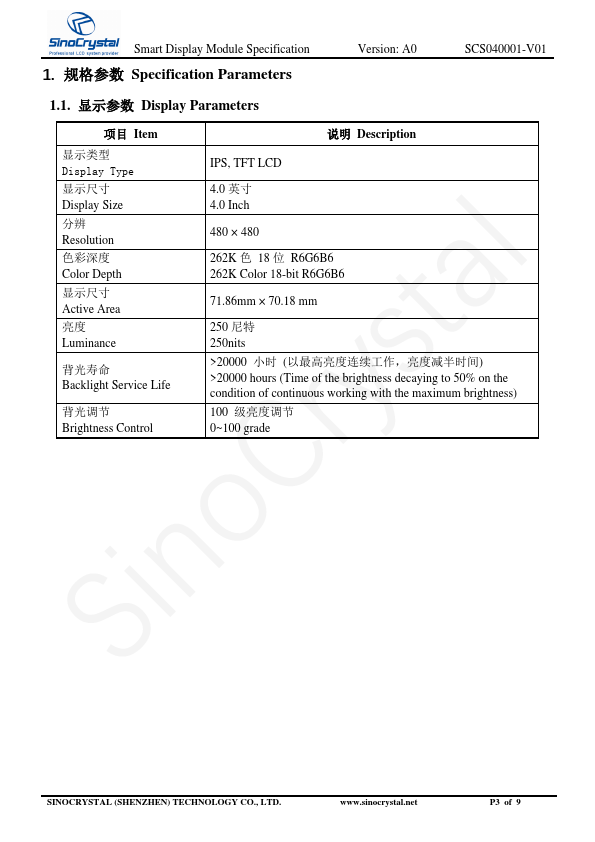

IPS, TFT LCD 4.0 4.0 Inch 480 ×480 262K 18 R6G6B6 262K Color 18-bit R6G6B6 71.86mm ×70.18 mm 250 250nits >20000 (，) >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) 100 0~100 grade SINOCRYSTAL (SHENZHEN) TECHNOLOGY CO., LTD.www.sinocrystal.net P3 of 9 Smart Display Module Specification 1.2. Hardware Characteristics Version: A0 SCS040001-V01 Item Flash Memory Touch Panel RTC Buzzer Zigbee Zigbee Module M

Features

Self-developed serial screen host software : ，PC ， 1/2/4/8 ， Support for multiple control operations Communication Protocols: Autonomous standard protocols Interface simulator and serial port simulator, all development work done on the PC Font generator supporting 1/2/4/8-bit dot matrix data for vector font effects 1.4. Serial interface parameters Mode Voltage Level Baud Rate Data Format RS485 RS485 standard 1200~115200bps, 115200bps 1200~115200bps, typical value 115200bps N81 1.5.
