MBR20200CG - Power Schottky Rectifier

This page provides the datasheet information for the MBR20200CG, a member of the MBR20200CT Power Schottky Rectifier family.

Datasheet Summary

Features

  • s -Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 4 KV.

📥 Download Datasheet

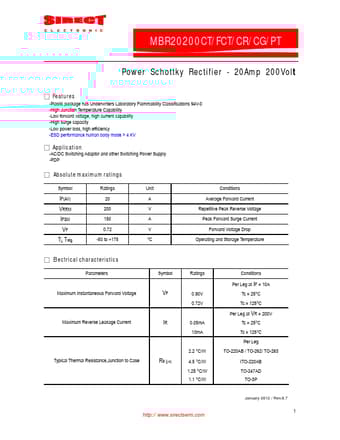

Datasheet preview – MBR20200CG

Datasheet Details

Part number MBR20200CG
Manufacturer SIRECT
File Size 151.46 KB
Description Power Schottky Rectifier
Datasheet download datasheet MBR20200CG Datasheet
Additional preview pages of the MBR20200CG datasheet.

📁 Similar Datasheet

  • MBR20200C - SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR20200C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (Diodes)
  • MBR20200C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (BCD)
  • MBR20200CA - 20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers (Thinki Semiconductor)
  • MBR20200CD - Schottky Diode (Yangzhou Yangjie)
  • MBR20200CD - Schottky Barrier Rectifiers (Eris)
  • MBR20200CK - SCHOTTKY BARRIER RECTIFIER (MOSPEC)
  • MBR20200CP - 20.0A SCHOTTKY BARRIER DIODE (Zibo Seno)
  • MBR20200CS - SCHOTTKY BARRIER RECTIFIER (MOSPEC)
  • MBR20200CT - Schottky Barrier Rectifier Diode (Diotec)
Other Datasheets by SIRECT

Full PDF Text Transcription

Click to expand full text
ELECTRONIC MBR20200CT/FCT/CR/CG/PT Power Schottky Rectifier - 20Amp 200Volt □ Features -Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 4 KV □ Application -AC/DC Switching Adaptor and other Switching Power Supply -PDP □ Absolute maximum ratings Symbol IF(AV) VRRM IFSM VF Tj, Tstg Ratings 20 200 150 0.
