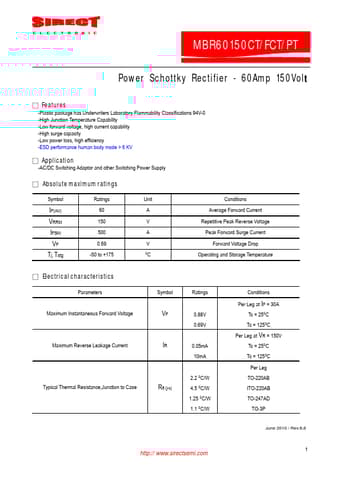

MBR60150FCT
Features
-Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 6 KV
- Application
-AC/DC Switching Adaptor and other Switching Power Supply
- Absolute maximum ratings
Symbol
IF(AV) VRRM IFSM
VF Tj, Tstg
Ratings 60 150 500 0.69
-50 to +175
Unit A V A V ºC
Conditions Average Forward Current Repetitive Peak Reverse Voltage Peak Forward Surge Current
Forward Voltage Drop Operating and Storage Temperature
- Electrical characteristics
Parameters Maximum Instantaneous Forward Voltage
Maximum Reverse Leakage Current
Typical Thermal Resistance,Junction to Case
Symbol
Ratings
VF 0.88V
0.69V
IR 0.05m A
10m A
Rθ (j-c)
2.2 ºC/W 4.5 ºC/W 1.25 ºC/W 1.1 ºC/W
Conditions
Per Leg at IF = 30A
Tc = 25ºC Tc =...
