SRQ-2116Z, Direct Quadrature Demodulator

Preliminary Data Sheet Product .
The SRQ-2116Z is a high-linearity, silicon germanium direct demodulator designed for direct conversion and low-IF basestation receivers.

SRQ-2116Z_SIRENZA.pdf

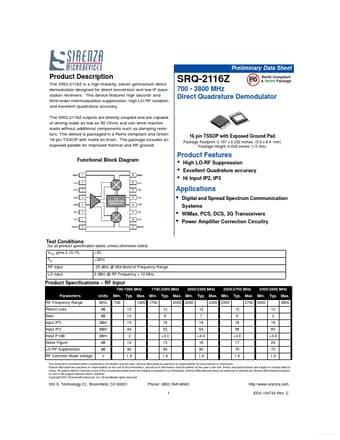

SRQ-2116Z Datasheet Preview — Preview of SRQ-2116Z PDF

Datasheet Details

Part number:

SRQ-2116Z

Manufacturer:

SIRENZA

File Size:

222.85 KB

Description:

Direct Quadrature Demodulator

Features

* high second- and third-order intermodulation suppression, high LO-RF isolation and excellent quadrature accuracy. The SRQ-2116Z outputs are directly coupled and are capable of driving loads as low as 50 Ohms and can drive reactive loads without additional components such as damping resistors. This d

Applications

* Digital and Spread Spectrum Communication Systems WiMax, PCS, DCS, 3G Transceivers Power Amplifier Correction Circuitry Test Conditions (for all product specification tables unless otherwise noted) VCC (pins 2,10,15) TA RF Input LO Input +5V +25ºC -25 dBm @ Mid-Band of Frequency Range 0 dBm @ RF Fr
