SC2128A - REMOTE FAN CONTROL IC

Datasheet Summary

Description

The SC2128A is a high performance electronic fan controller LSI, Speed control, off-timer, rhythm wind, sleep mode, head swing and/or light control are all built into a single chip.

Features

  • High performance CMOS Technology.
  • Low power consumption.
  • Optional independent light control.
  • 90 seconds cycle/6 seconds per step(off step 3 seconds) rhythm wind pattern.
  • Built-in remote control decoding circuitry with mask option custom code.
  • DIP or SO package(22 pin SO not available).
  • Up to 3 dependent/independent swing-head/light output.
  • Available in 16,18,20,22,24 pin package for none, one set or two sets of swing head and/or light control.
  • Four o.

📥 Download Datasheet

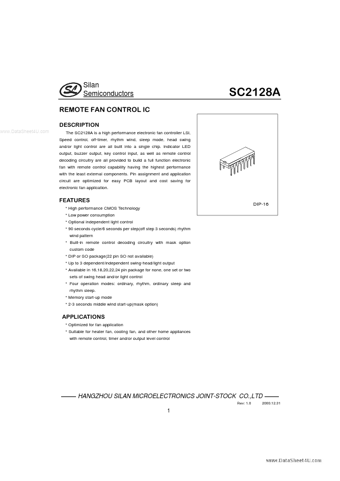

Datasheet preview – SC2128A
