SD6835 - CURRENT MODE PWM+PFM CONTROLLER

Product Overview

Part number	SD6835
Manufacturer	SL
File Size	257.20 KB
Description	CURRENT MODE PWM+PFM CONTROLLER
Datasheet	SD6835 Datasheet

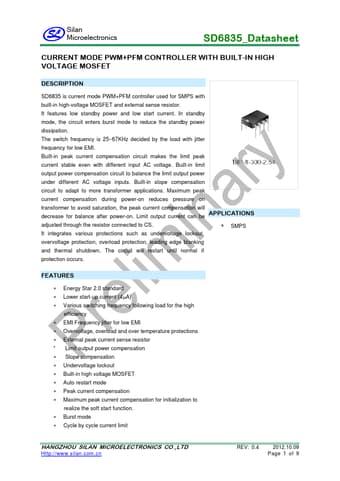

Additional preview pages of the SD6835 datasheet.

SD6835 is current mode PWM+PFM controller used for SMPS with built-in high-voltage MOSFET and external sense resistor.It

low standby power and low start current. In standby mode, the circuit enters burst mode to reduce the standby power dissipation. The switch frequency is 25~67KHz decided by the load with jitter frequency for low EMI. Built-in peak current compensation circuit makes the limit peak current stable even with different input AC voltage. Built-in limit output power compensation circuit to balance the limit output power under different AC voltage inputs. Built-in slope compensation circuit to.
