MBR30120CT, MBR30120CT-SMC - SCHOTTKY RECTIFIER

MBR30120CT Description

MBR30120CT Technical Data Data Sheet N0041, Rev.A MBR30120CT SCHOTTKY RECTIFIER LKLLKJHYJ, TO-220AB Circuit Diagram .

MBR30120CT Features

* 175C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliabil

MBR30120CT Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR30120CT, MBR30120CT-SMC. Please refer to the document for exact specifications by model.

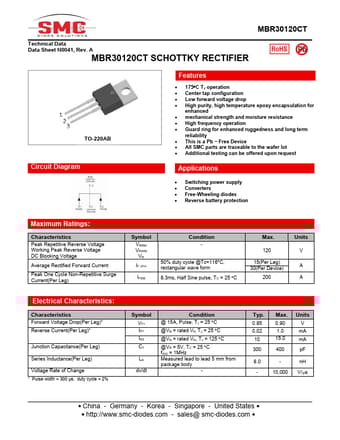

datasheet Preview Page 2 datasheet Preview Page 3
