10BQ030 SCHOTTKY RECTIFIER

SMC Diode

10BQ030 Description

10BQ030 Technical Data Data Sheet N0643, Rev.A 10BQ030 SCHOTTKY RECTIFIER .

10BQ030 Features

* SMB
* Small foot print, surface moutable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be

10BQ030 Applications

* Disk Drives
* Switching power supply
* Redundant power subsystems
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery Charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Avera

📥 Download Datasheet

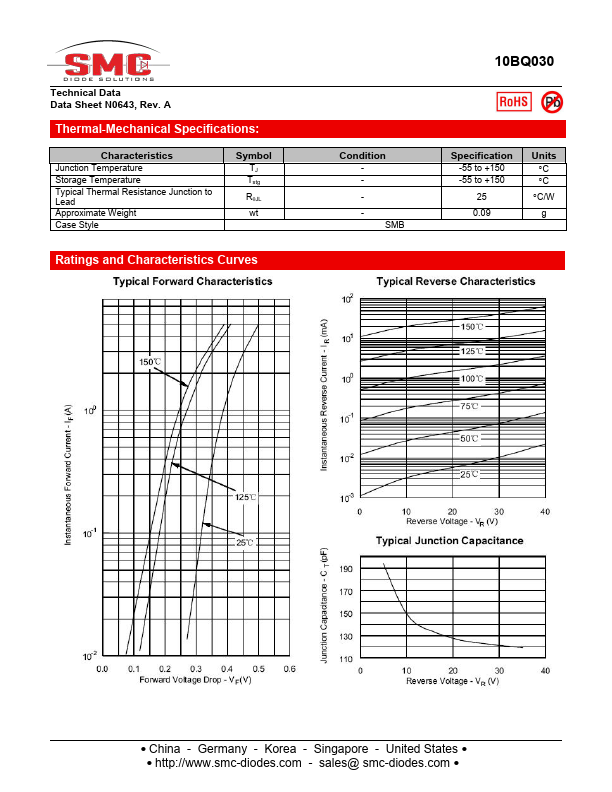

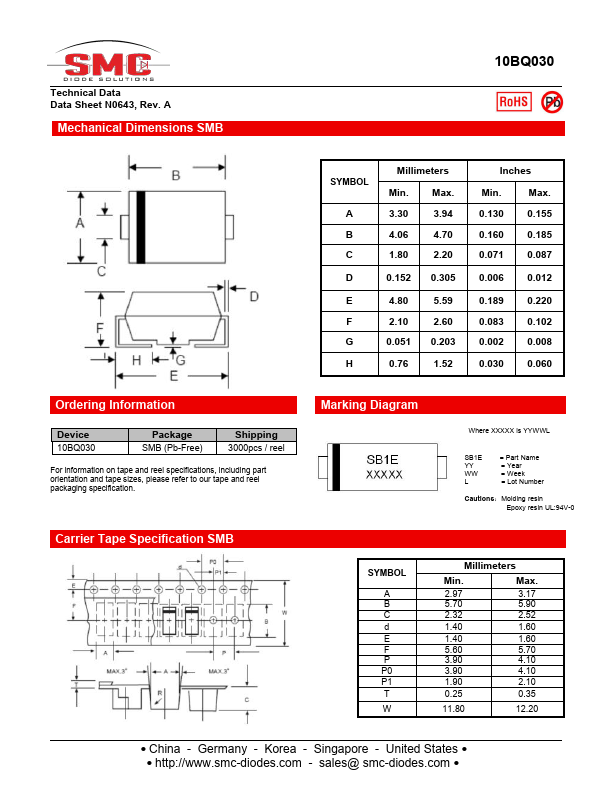

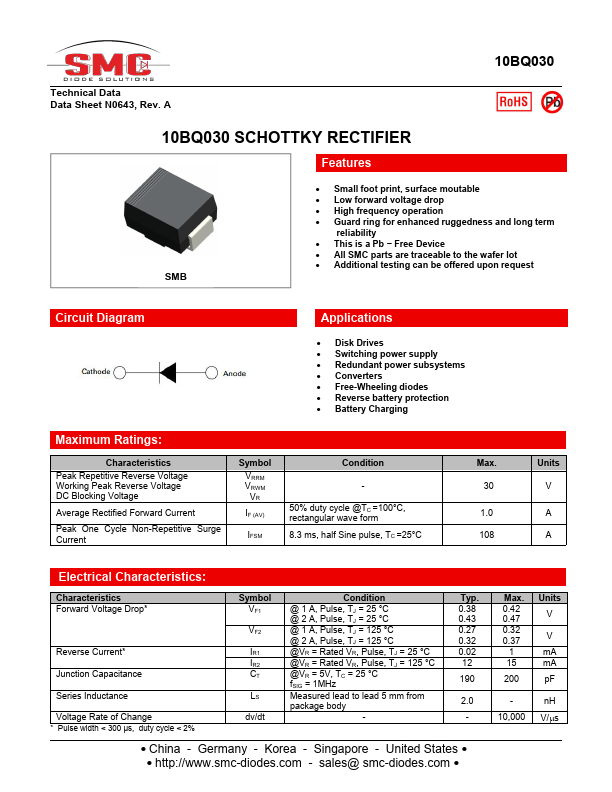

10BQ030 Datasheet Preview — Preview of 10BQ030 PDF

Datasheet Details

Part number: 10BQ030
Manufacturer: SMC Diode
File Size: 277.83 KB
Datasheet: 10BQ030-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER
