1N4002 - 1.0 SILICON RECTIFIER

This page provides the datasheet information for the 1N4002, a member of the 1N4001 1.0 SILICON RECTIFIER family.

Datasheet Summary

Features

  • DO-41.
  • Diffused Junction.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability.
  • This is a Pb.
  • Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request Circuit Diagram Mechanical Data.
  • Case: molded plastic.
  • Terminals: Plated leads, solderable per MIL-STD- 202, Method 208.
  • Polarity: Cathode band.
  • Mounting Position: Any.
  • Weight.

📥 Download Datasheet

Datasheet preview – 1N4002

Datasheet Details

Part number 1N4002
Manufacturer SMC Diode
File Size 307.72 KB
Description 1.0 SILICON RECTIFIER
Datasheet download datasheet 1N4002 Datasheet

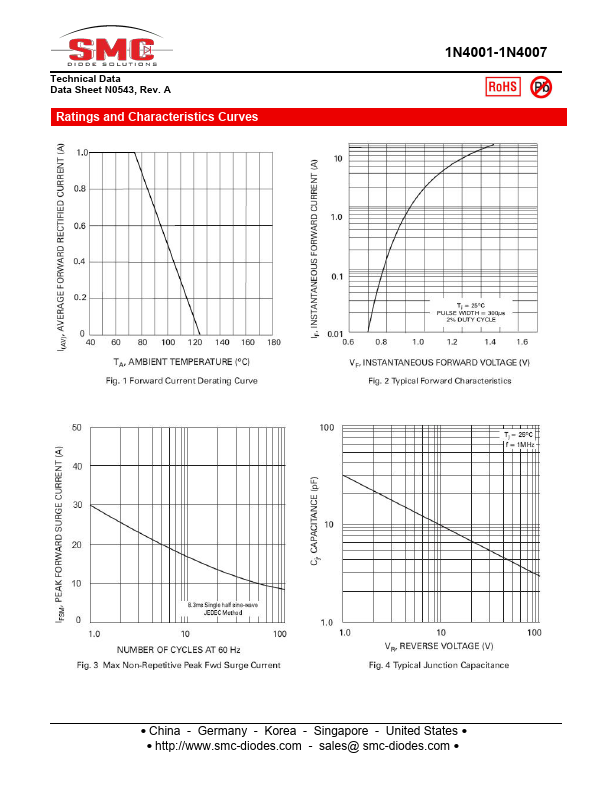

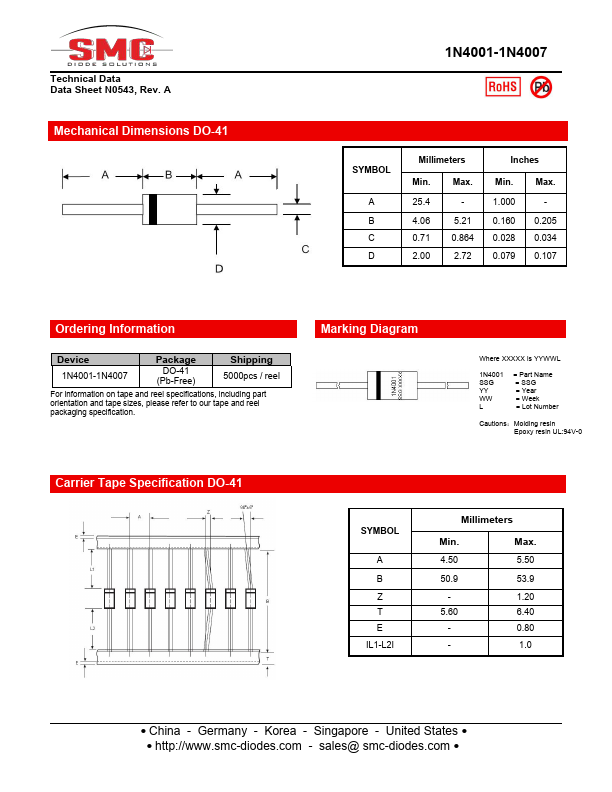

Additional preview pages of the 1N4002 datasheet.

📁 Similar Datasheet

  • 1N4002 - SILICON RECTIFIER DIODES (EIC)
  • 1N4002 - 1.0A STANDARD DIODE (WON-TOP)
  • 1N4002 - 1.0A RECTIFIER (Vishay Siliconix)
  • 1N4002 - Axial Lead Standard Recovery Rectifiers (ON Semiconductor)
  • 1N4002 - General Purpose Rectifiers (Fairchild Semiconductor)
  • 1N4002 - General Purpose Plastic Rectifiers (LRC)
  • 1N4002 - 1.0A RECTIFIER (Diodes)
  • 1N4002 - General Purpose Plastic Rectifiers (New Jersey Semi-Conductor)
  • 1N4002 - 1.0 Amp Rectifier (MCC)
  • 1N4002 - AXIAL LEADED RECTIFIER DIODES (Sunmate)
Other Datasheets by SMC Diode
  • 1N4002FL - General Purpose Plastic Rectifier
  • 1N4002G - 1.0A GLASS PASSIVATED RECTIFIER
  • 1N4002S - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4001 - 1.0 SILICON RECTIFIER
  • 1N4001FL - General Purpose Plastic Rectifier
  • 1N4001G - 1.0A GLASS PASSIVATED RECTIFIER
  • 1N4001S - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4003 - 1.0 SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

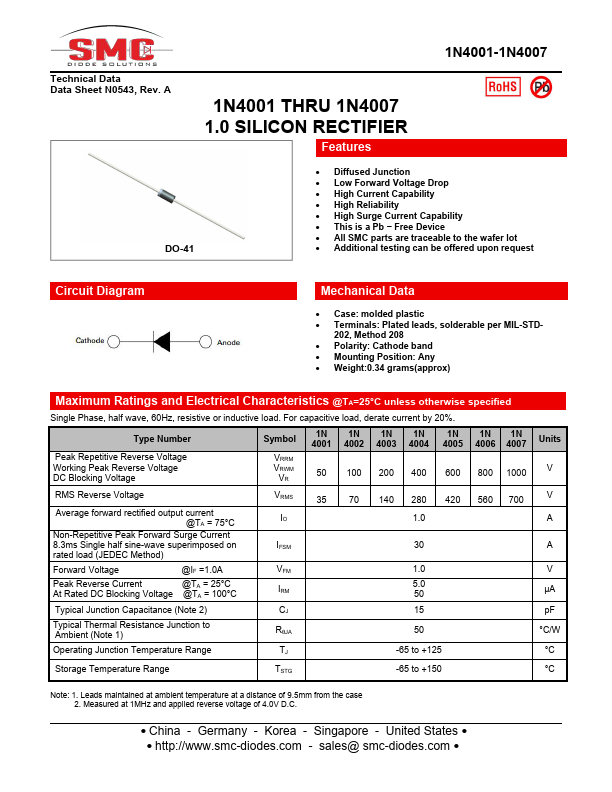

1N4001-1N4007 Technical Data Data Sheet N0543, Rev. A 1N4001 THRU 1N4007 1.0 SILICON RECTIFIER Features DO-41  Diffused Junction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability  This is a Pb − Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Circuit Diagram Mechanical Data  Case: molded plastic  Terminals: Plated leads, solderable per MIL-STD- 202, Method 208  Polarity: Cathode band  Mounting Position: Any  Weight:0.34 grams(approx)  Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
