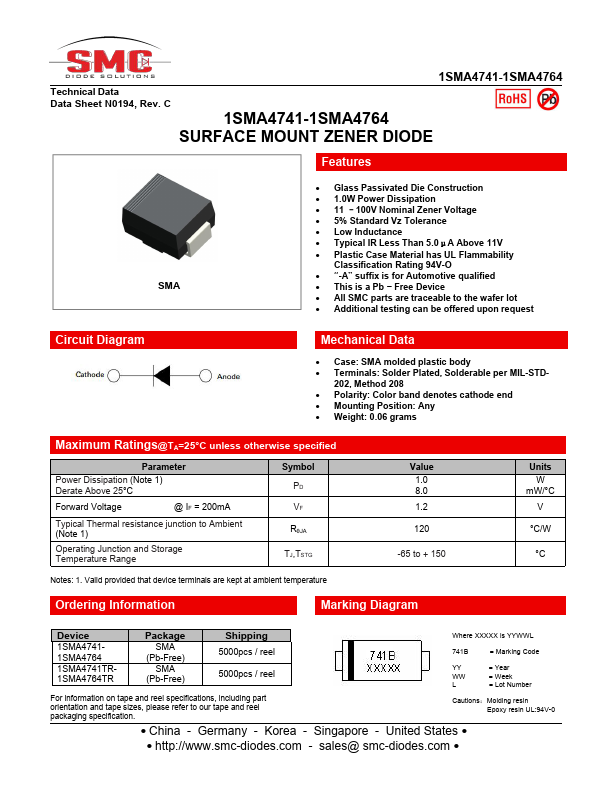

1SMA4747, 1SMA4741 SURFACE MOUNT ZENER DIODE

1SMA4741-1SMA4764 Technical Data Data Sheet N0194, Rev.C 1SMA4741-1SMA4764 SURFACE MOUNT ZENER DIODE .

1SMA4741-SMCDiode.pdf

1SMA4747 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SMA4747, 1SMA4741. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1SMA4747, 1SMA4741

Manufacturer:

SMC Diode

File Size:

323.32 KB

Description:

SURFACE MOUNT ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: 1SMA4747, 1SMA4741.
Please refer to the document for exact specifications by model.

Features

* SMA
* Glass Passivated Die Construction
* 1.0W Power Dissipation
* 11
* 100V Nominal Zener Voltage
* 5% Standard Vz Tolerance
* Low Inductance
* Typical IR Less Than 5.0μA Above 11V
* Plastic Case Material has UL Flammability Classification Rating 94V-O
* “-A

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
