3.0SMI45A, 3.0SMI5.0A - SURFACE MOUNT TRANSIENT VOLTAGESUPPRESSOR

3.0SMI45A Description

3.0SMI SERIES Technical Data Data Sheet N1804 Rev.A 3.0SMI SERIES SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR .

3.0SMI45A Features

* SMC Circuit Diagram
* Glass Passivated Die Construction
* 3000W Peak Pulse Power Dissipation
* 5.0V- 170V Standoff Voltage
* Uni- and Bi-Directional Versions Available
* Excellent Clamping Capability
* Fast Response Time
* Plastic Case Material has UL Flammability Class

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 3.0SMI45A, 3.0SMI5.0A. Please refer to the document for exact specifications by model.

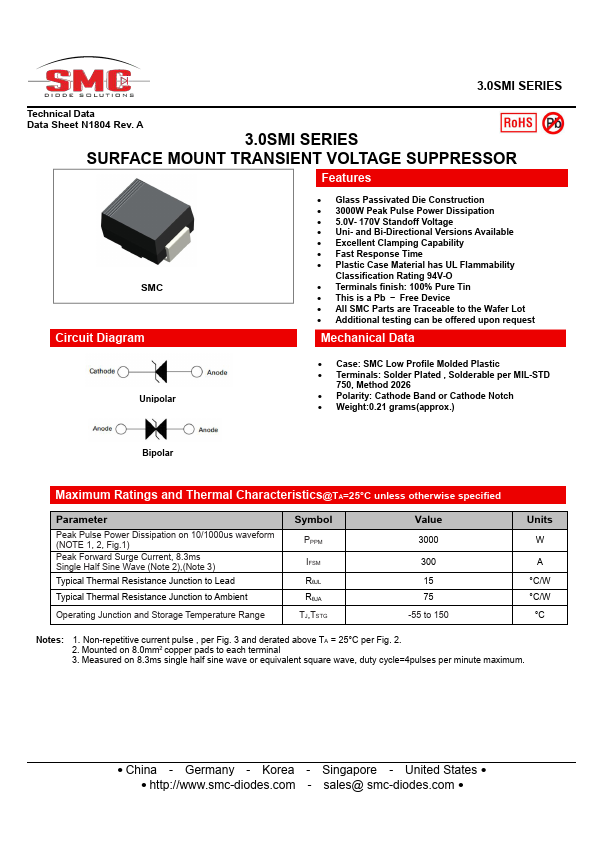

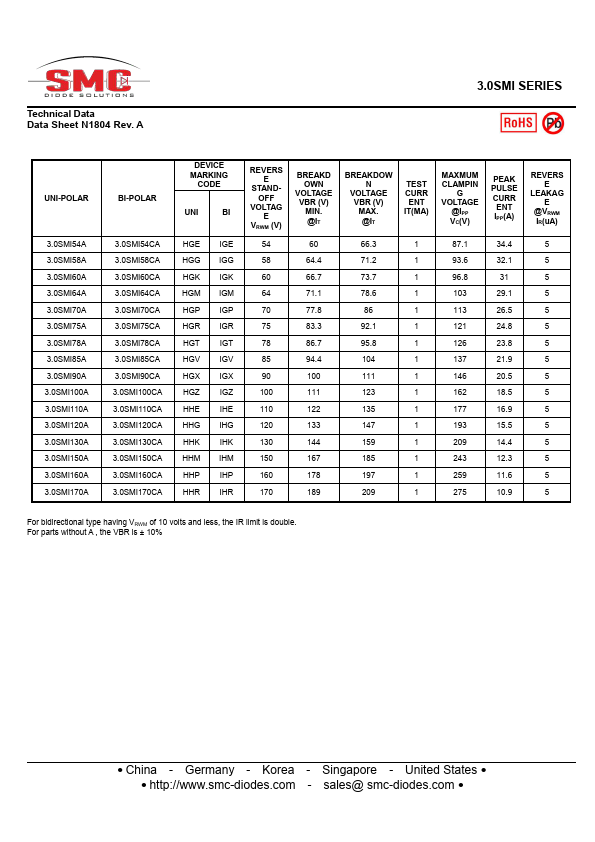

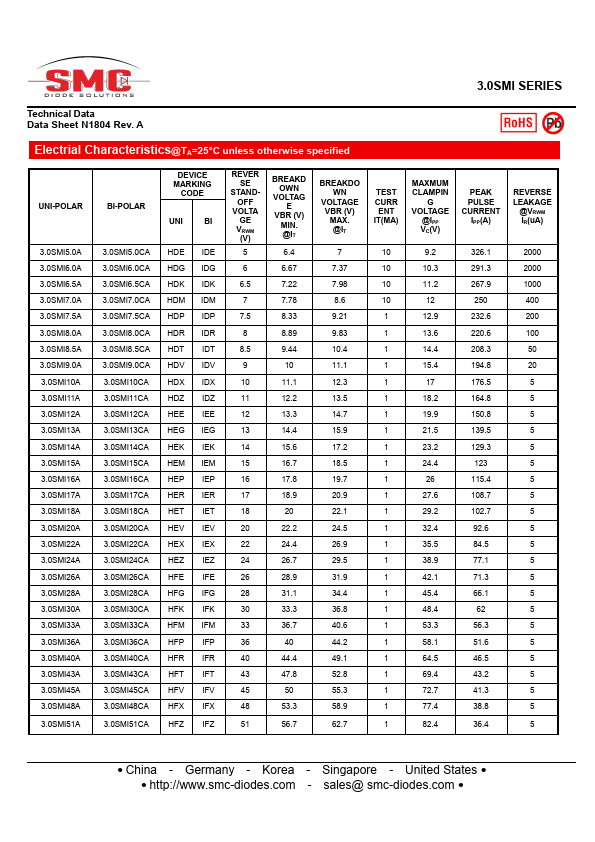

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
3.0SMI45A, 3.0SMI5.0A
Manufacturer
SMC Diode
File Size
384.42 KB
Datasheet
3.0SMI5.0A-SMCDiode.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGESUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: 3.0SMI45A, 3.0SMI5.0A.
Please refer to the document for exact specifications by model.
