31DQ04 SCHOTTKY RECTIFIER

SMC Diode

Description

Technical Data Data Sheet N0690, Rev.B 31DQ04 SCHOTTKY RECTIFIER 31DQ04 DO-201AD Circuit Diagram .

📥 Download Datasheet

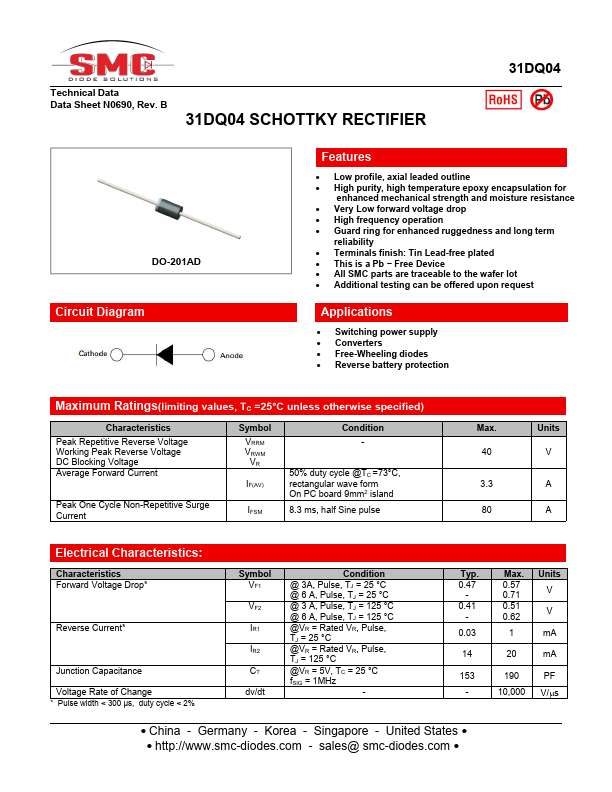

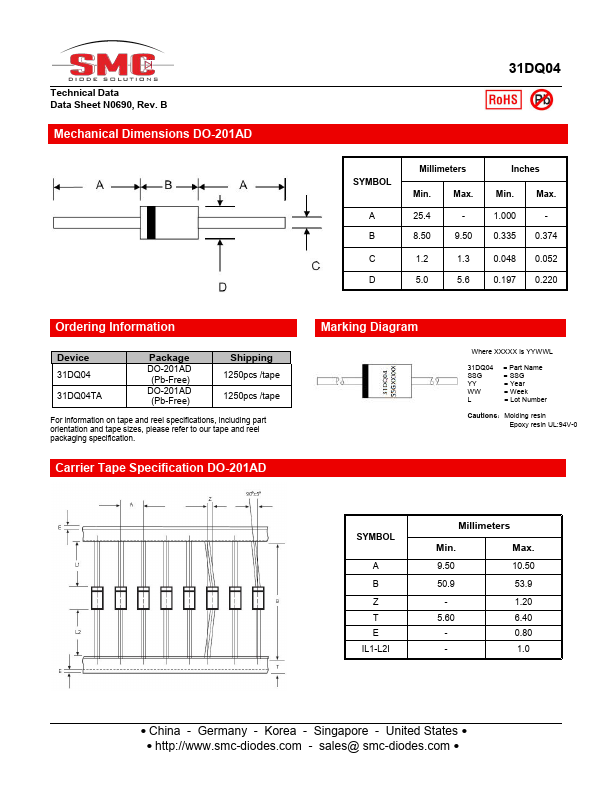

31DQ04 Datasheet Preview — Preview of 31DQ04 PDF

Datasheet Specifications

Part number: 31DQ04
Manufacturer: SMC Diode
File Size: 296.11 KB
Datasheet: 31DQ04-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER

Features

* Low profile, axial leaded outline
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Very Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Termina

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings(limiting values, TC =25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current P
