6A10, 6A1 GENERAL PURPOSE SILICON RECTIFIER

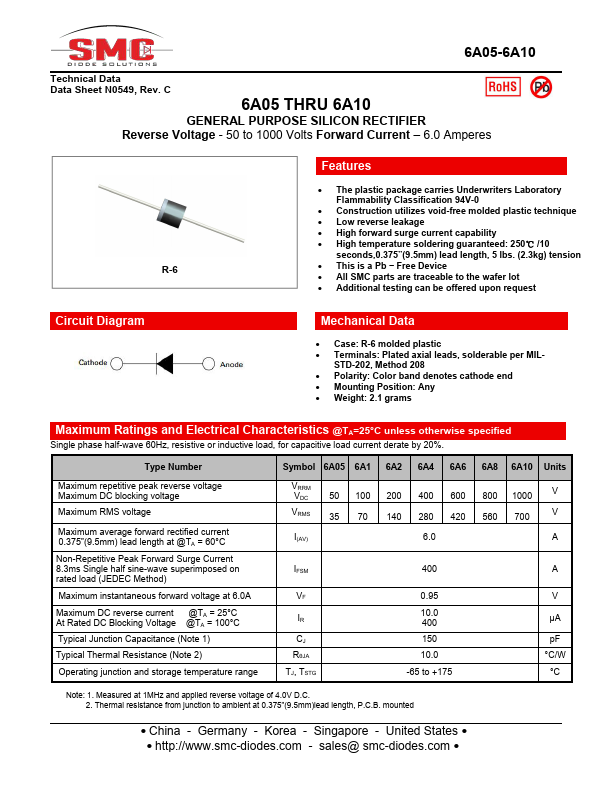

📥 Download Datasheet Datasheet Preview Page 1

Description

6A05-6A10 Technical Data Data Sheet N0549, Rev.C 6A05 THRU 6A10 GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 6A10, 6A1. Please refer to the document for exact specifications by model.

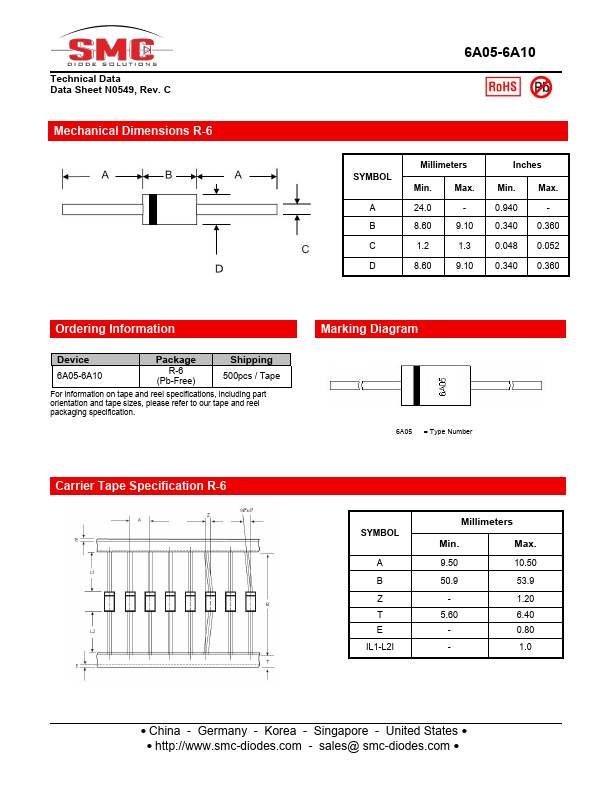

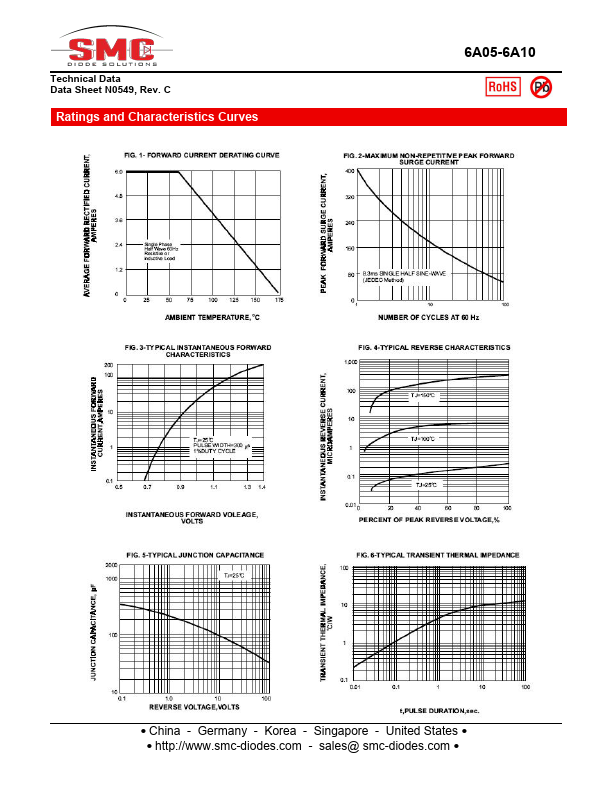

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
6A10, 6A1
Manufacturer
SMC Diode
File Size
330.23 KB
Datasheet
6A1-SMCDiode.pdf
Description
GENERAL PURPOSE SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 6A10, 6A1.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Construction utilizes void-free molded plastic technique
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 250℃ /10 seconds,0.375”

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co. , Ltd be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is
