6A10G, 6A1G GLASS PASSIVATED SILICON RECTIFIER

SMC Diode

Description

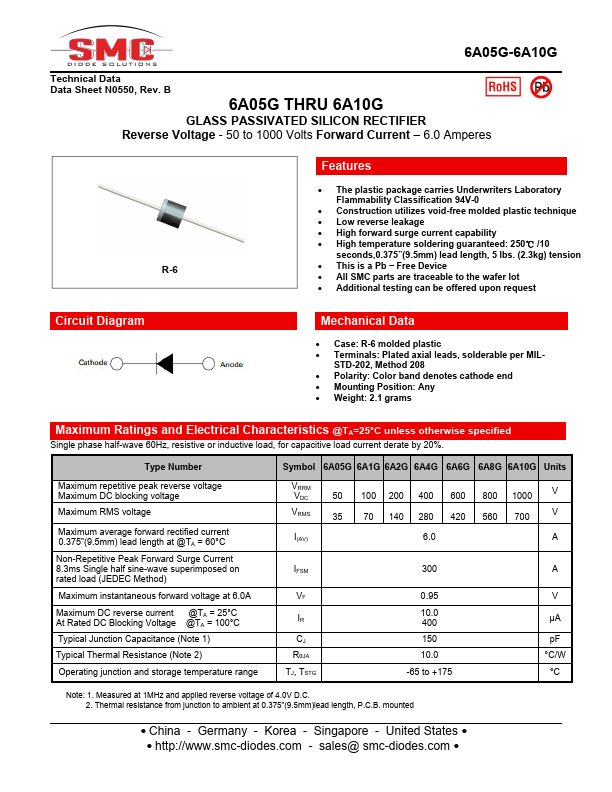

6A05G-6A10G Technical Data Data Sheet N0550, Rev.B 6A05G THRU 6A10G GLASS PASSIVATED SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Cur.

📥 Download Datasheet

6A10G Datasheet Preview — This datasheet PDF includes multiple part numbers: 6A10G, 6A1G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 6A10G, 6A1G
Manufacturer: SMC Diode
File Size: 338.71 KB
Datasheet: 6A1G-SMCDiode.pdf
Description: GLASS PASSIVATED SILICON RECTIFIER
Note: This datasheet PDF includes multiple part numbers: 6A10G, 6A1G.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Construction utilizes void-free molded plastic technique
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 250℃ /10 seconds,0.375”

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
