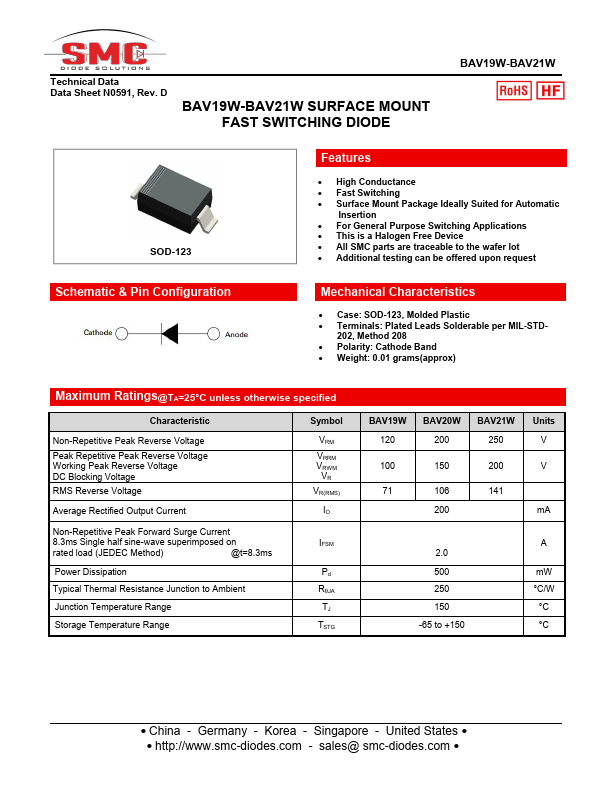

BAV19W
Features
- High Conductance
- Fast Switching
- Surface Mount Package Ideally Suited for Automatic
Insertion
- For General Purpose Switching Applications
- This is a Halogen Free Device
- All SMC parts are traceable to the wafer lot
- Additional testing can be offered upon request
Schematic & Pin Configuration

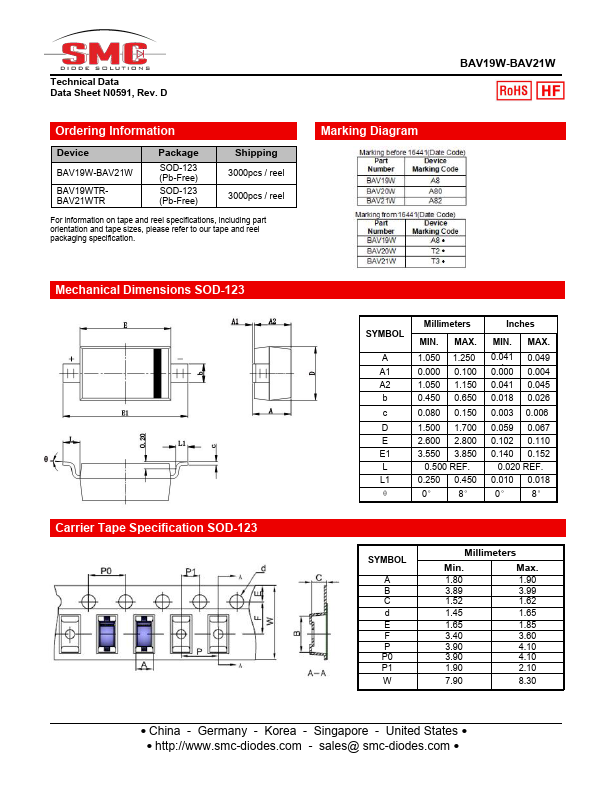

Mechanical Characteristics
- Case: SOD-123, Molded Plastic
- Terminals: Plated Leads Solderable per MIL-STD-
202, Method 208
- Polarity: Cathode Band
- Weight: 0.01 grams(approx)
Maximum Ratings@TA=25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage
Average Rectified Output Current
Symbol
VRM VRRM VRWM VR VR(RMS)
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
IFSM rated load (JEDEC Method)
@t=8.3ms
Power Dissipation
Pd
Typical Thermal Resistance Junction to Ambient
RθJA
Junction...
