BAV99 - SWITCHING DIODE

SMC Diode

📥 Download Datasheet

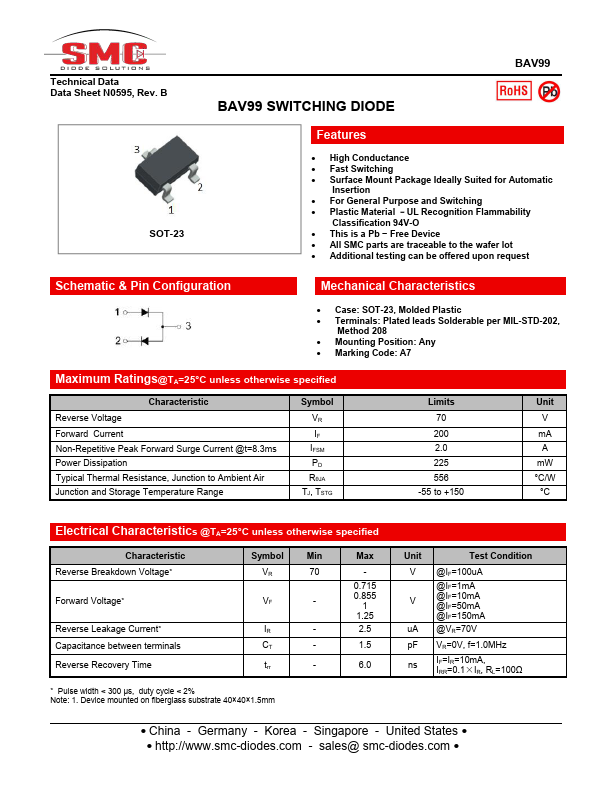

BAV99 Datasheet Preview — Preview of BAV99 PDF

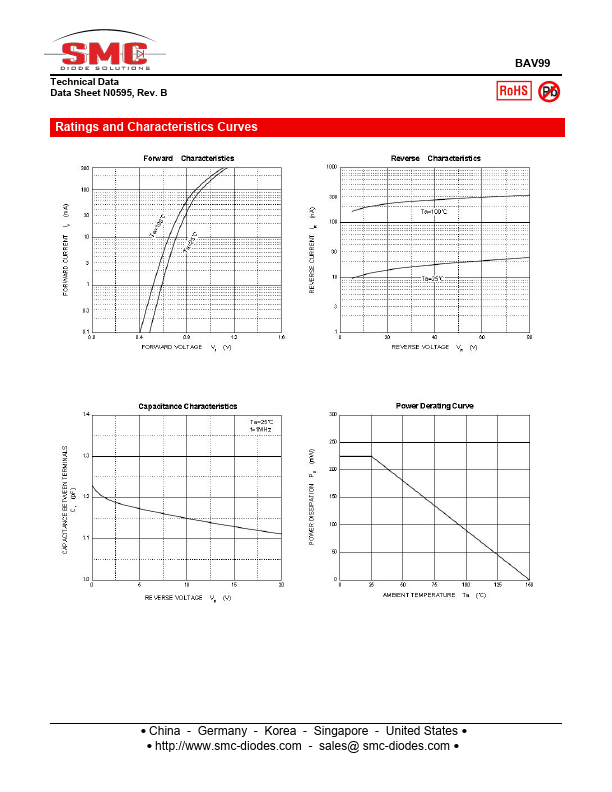

datasheet Preview Page 2

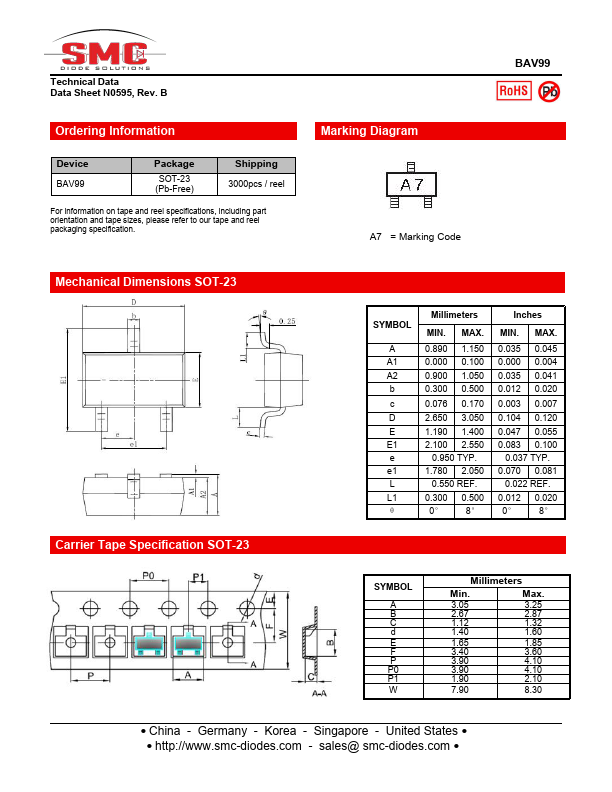

datasheet Preview Page 3

Datasheet Details

Part number	BAV99
Manufacturer	SMC Diode
File Size	297.49 KB
Description	SWITCHING DIODE
Datasheet	BAV99-SMCDiode.pdf

BAV99 Product details

Features

High Conductance.
Fast Switching.
Surface Mount Package Ideally Suited for Automatic Insertion.
For General Purpose and Switching.
Plastic Material.
UL Recognition Flammability Classification 94V-O.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics.
Case: SOT-23, Molded Plastic.
Terminals: Plated leads.
