BAV99W - FAST SWITCHING DIODE

Datasheet Summary

Features

  • High Conductance.
  • Fast Switching.
  • Surface Mount Package Ideally Suited for Automatic Insertion.
  • For General Purpose and Switching.
  • Plastic Material.
  • UL Recognition Flammability Classification 94V-O.
  • This is a Halogen Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics.
  • Case: SOT-323, Molded Plastic.
  • Terminals: Plated leads Sol.

📥 Download Datasheet

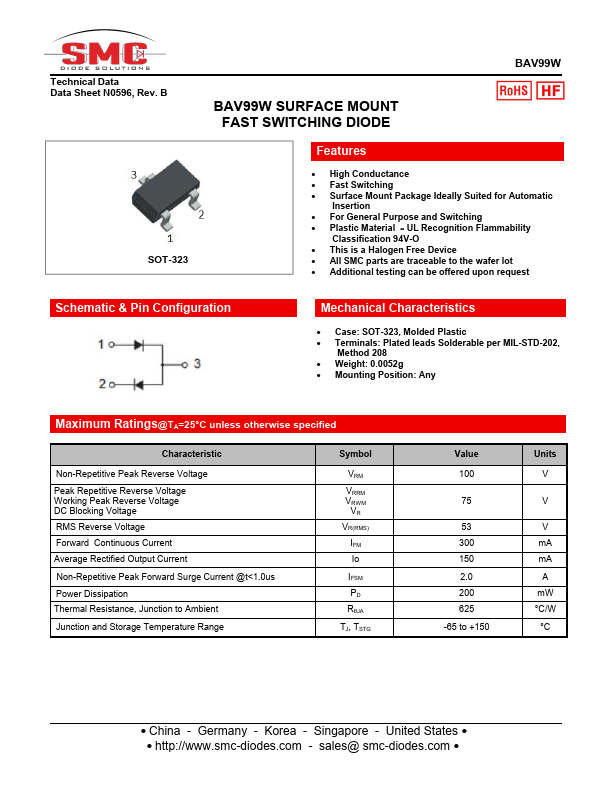

Datasheet preview – BAV99W

Datasheet Details

Part number BAV99W
Manufacturer SMC Diode
File Size 257.21 KB
Description FAST SWITCHING DIODE
Datasheet download datasheet BAV99W Datasheet

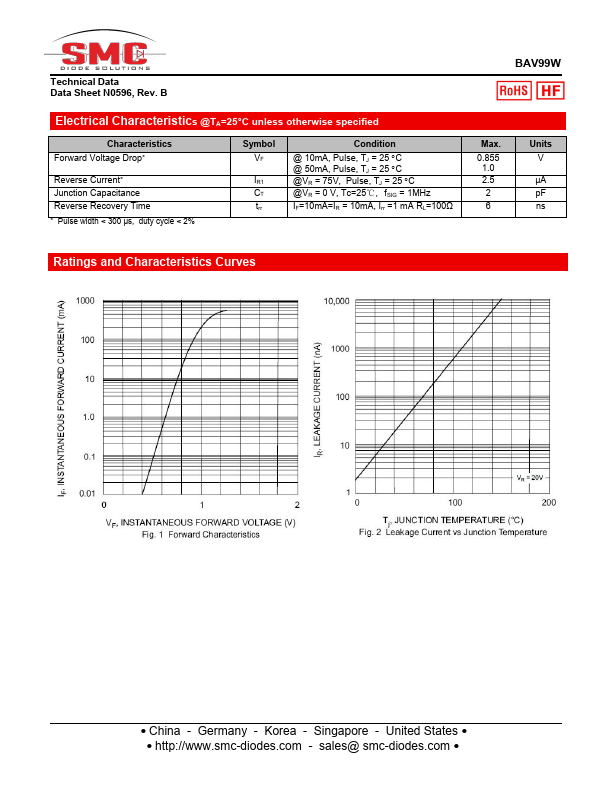

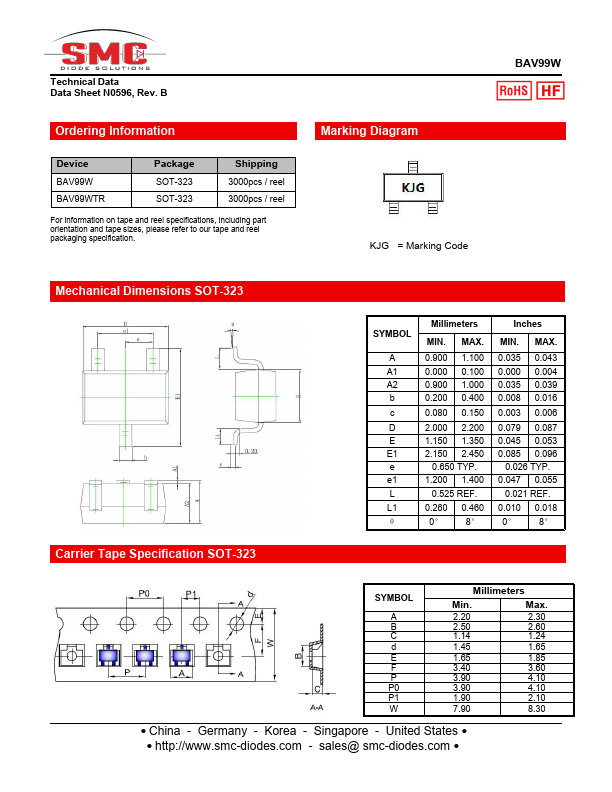

Additional preview pages of the BAV99W datasheet.
