BY255 - GENERAL PURPOSE SILICON RECTIFIER

SMC Diode

📥 Download Datasheet

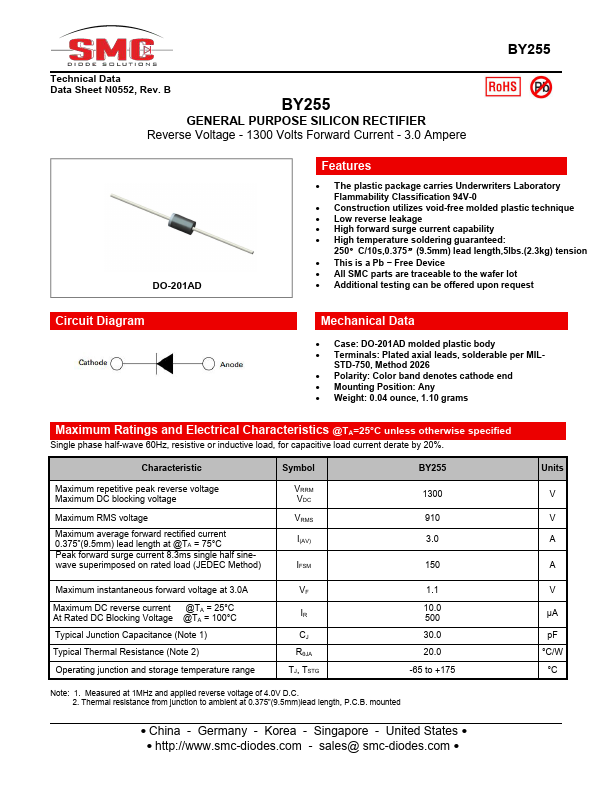

BY255 Datasheet Preview — Preview of BY255 PDF

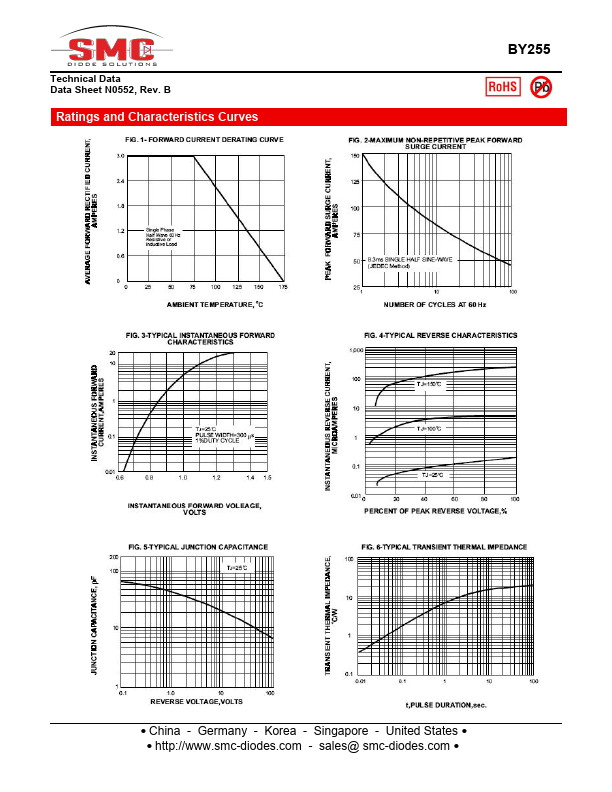

datasheet Preview Page 2

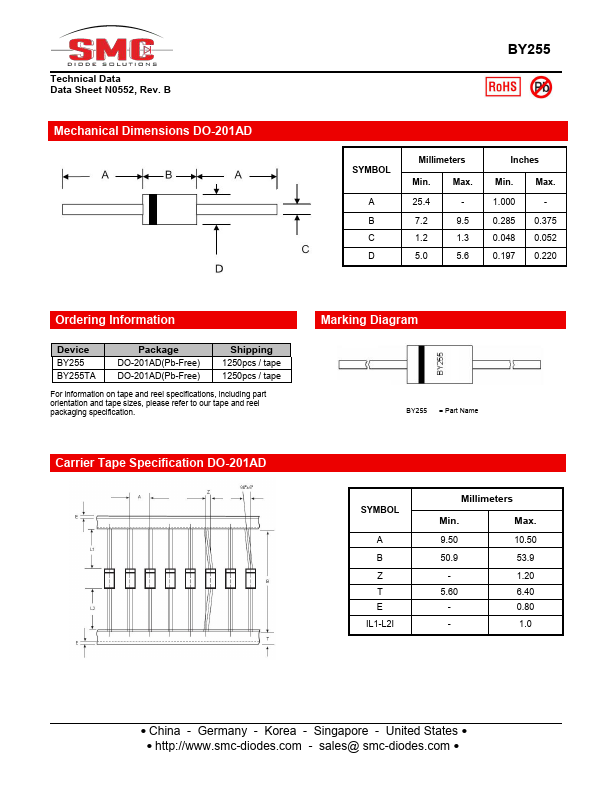

datasheet Preview Page 3

Datasheet Details

Part number	BY255
Manufacturer	SMC Diode
File Size	324.44 KB
Description	GENERAL PURPOSE SILICON RECTIFIER
Datasheet	BY255-SMCDiode.pdf

BY255 Product details

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
Construction utilizes void-free molded plastic technique.
Low reverse leakage.
High forward surge current capability.
High temperature soldering guaranteed: 250°C/10s,0.375”(9.5mm) lead length,5lbs. (2.3kg) tension.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical.
