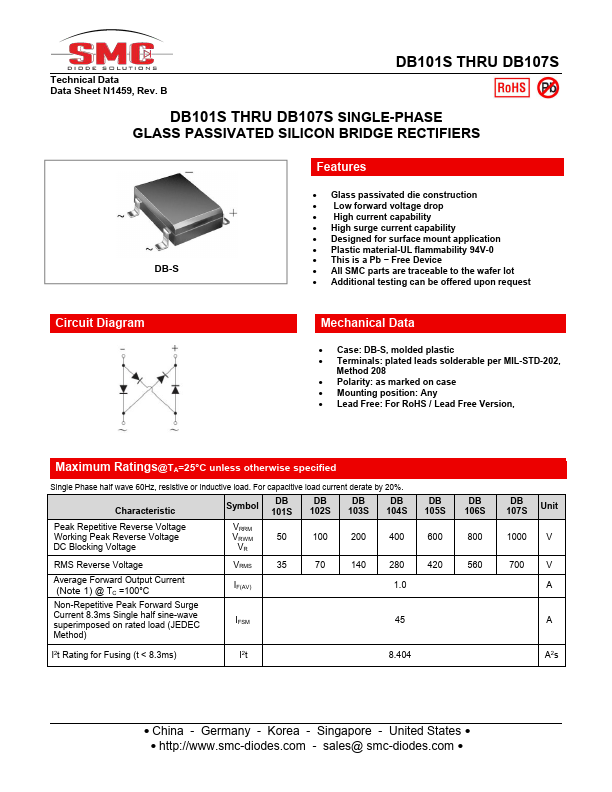

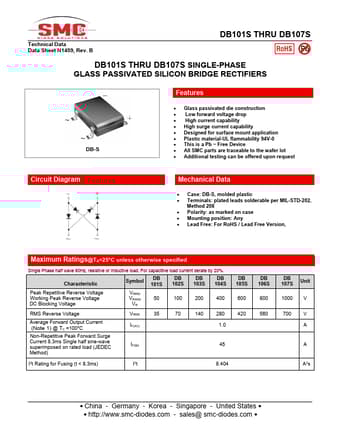

DB102S
Features
- Glass passivated die construction
- Low forward voltage drop
- High current capability
- High surge current capability
- Designed for surface mount application
- Plastic material-UL flammability 94V-0
- This is a Pb
- Free Device
- All SMC parts are traceable to the wafer lot
- Additional testing can be offered upon request
Circuit Diagram

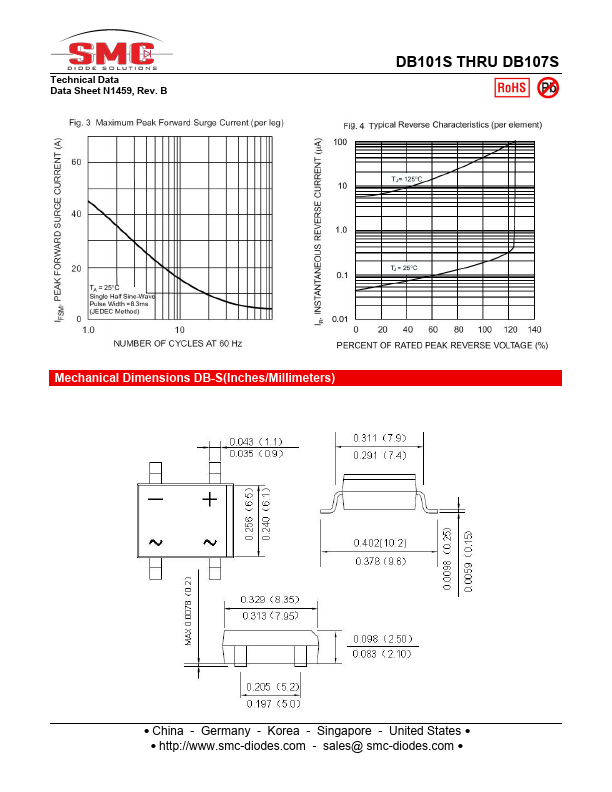

Mechanical Data
- Case: DB-S, molded plastic
- Terminals: plated leads solderable per MIL-STD-202,
Method 208
- Polarity: as marked on case
- Mounting position: Any
- Lead Free: For Ro HS / Lead Free Version,

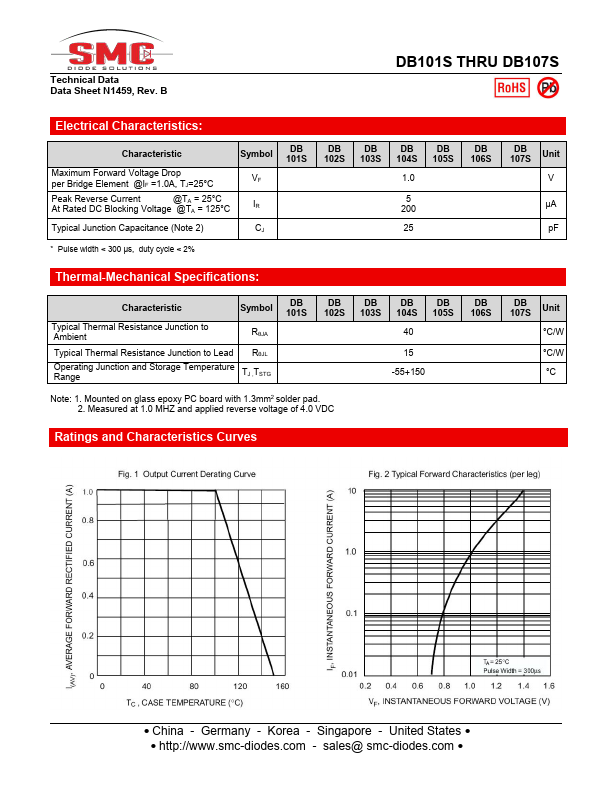

Maximum Ratings@an TAd=2E5l°e Ccutrnilceassl Cothhaerrwacisteesripsetcicifised@TA=25°C unless otherwise specified
Single Phase half wave 60Hz, resistive or inductive load. For capacitive load current derate by 20%.
Characteristic
Symbol
DB 101S
DB 102S
DB 103S
DB 104S
DB 105S
DB 106S
DB 107S
Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
VRRM
VRWM...
