DB103S, DB101S - GLASS PASSIVATED SILICON BRIDGE RECTIFIERS

DB103S Description

Technical Data Data Sheet N1459, Rev.B DB101S THRU DB107S DB101S THRU DB107S SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIERS DB-S .

DB103S Features

* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability

DB103S Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB103S, DB101S. Please refer to the document for exact specifications by model.

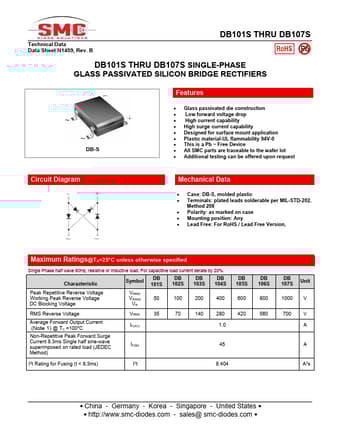

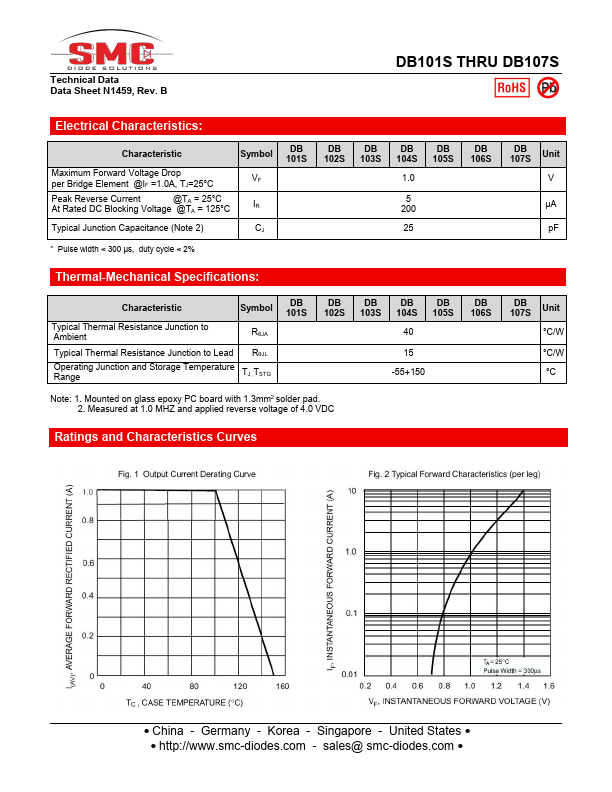

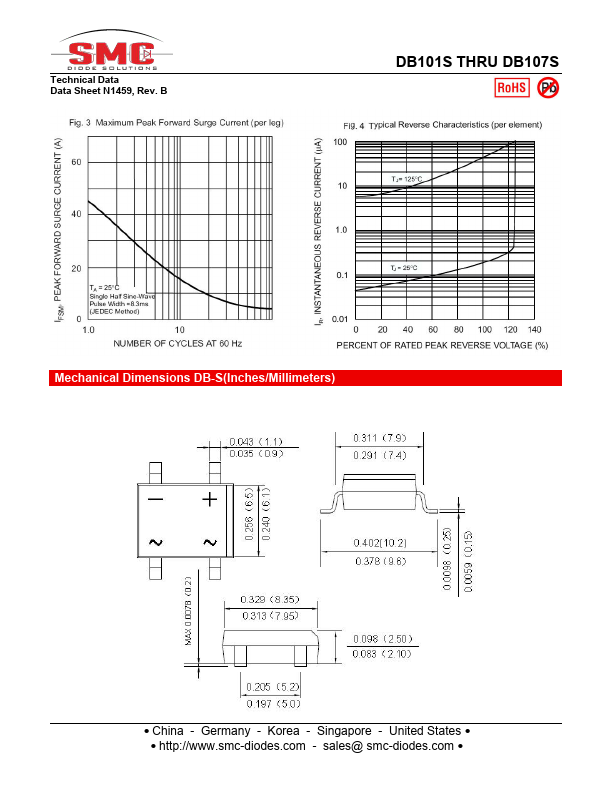

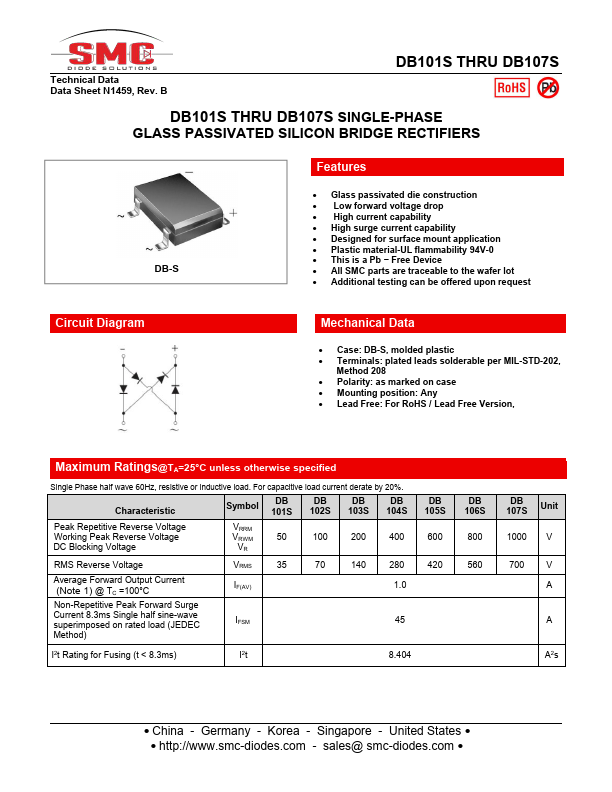

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB103S, DB101S
Manufacturer
SMC Diode
File Size
370.56 KB
Datasheet
DB101S-SMCDiode.pdf
Description
GLASS PASSIVATED SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: DB103S, DB101S.
Please refer to the document for exact specifications by model.
