DB105 - SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGERECTIFIER

This page provides the datasheet information for the DB105, a member of the DB101 SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGERECTIFIER family.

Datasheet Summary

Features

  • Glass passivated die construction.
  • Low forward voltage drop.
  • High current capability.
  • High surge current capability.
  • Plastic material-UL flammability 94V-0.
  • This is a Pb.
  • Free Device.
  • “-HF” suffix is for Halogen Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request Circuit Diagram Mechanical Data.
  • Case: DB-M, Molded plastic.
  • Terminals: Plated leads solderable per MIL-STD-202, Me.

📥 Download Datasheet

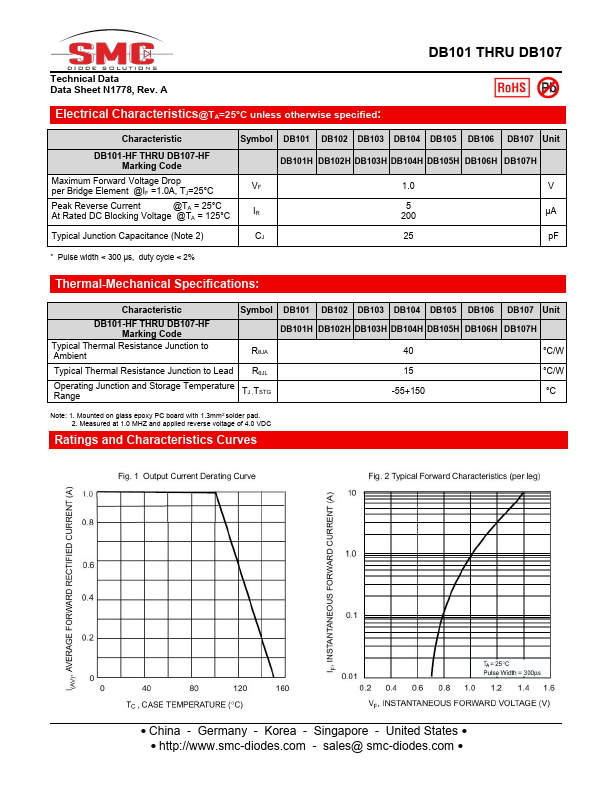

Datasheet preview – DB105

Datasheet Details

Part number DB105
Manufacturer SMC Diode
File Size 368.19 KB
Description SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGERECTIFIER
Datasheet download datasheet DB105 Datasheet

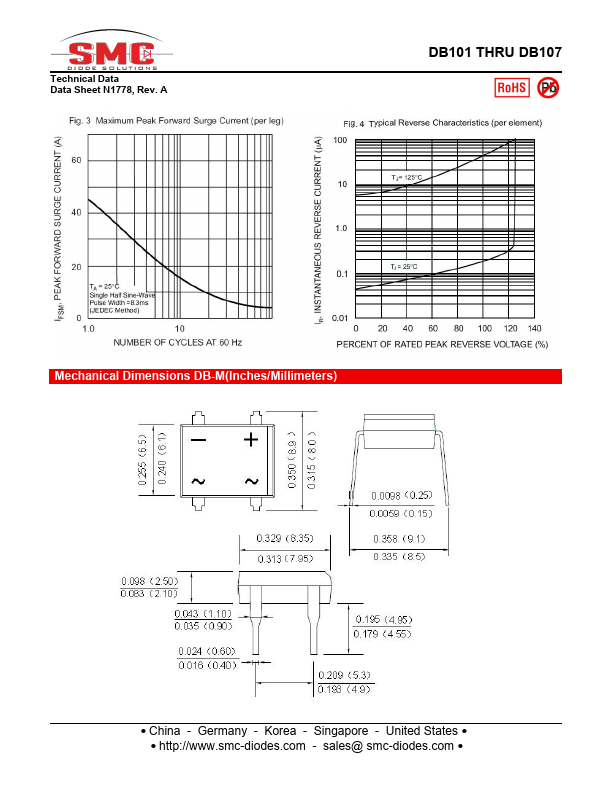

Additional preview pages of the DB105 datasheet.
