DSR1J, DSR1A SURFACE MOUNT HIGH EFFICIENCY RECTIFIER

SMC Diode

Description

DSR1A THRU DSR1M Technical Data Data Sheet N1650, Rev.A DSR1A THRU DSR1M SURFACE MOUNT HIGH EFFICIENCY RECTIFIER .

📥 Download Datasheet

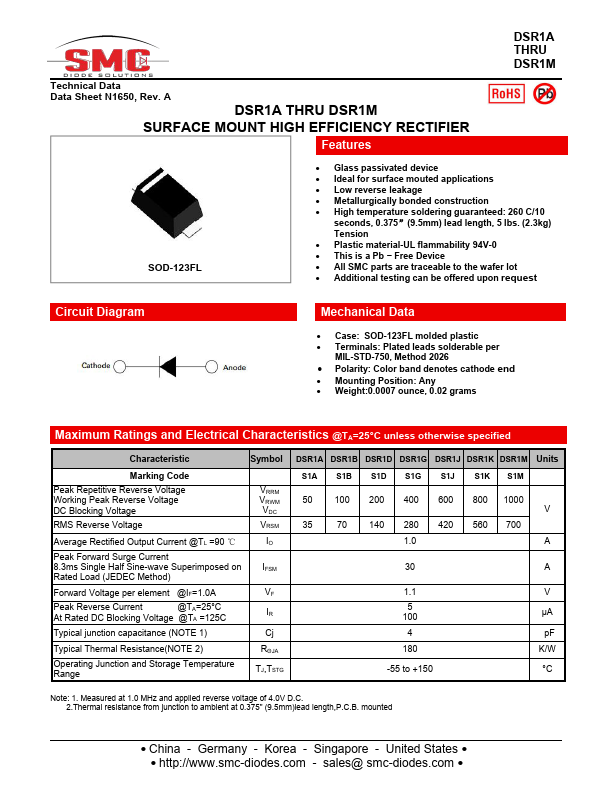

DSR1J Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1J, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DSR1J, DSR1A
Manufacturer: SMC Diode
File Size: 369.59 KB
Datasheet: DSR1A-SMCDiode.pdf
Description: SURFACE MOUNT HIGH EFFICIENCY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: DSR1J, DSR1A.
Please refer to the document for exact specifications by model.

Features

* SOD-123FL
* Glass passivated device

Applications

* Low reverse leakage
* Metallurgically bonded construction
* High temperature soldering guaranteed: 260 C/10 seconds, 0.375”(9.5mm) lead length, 5 lbs. (2.3kg) Tension
* Plastic material-UL flammability 94V-0
* This is a Pb
* Free Device
* All SMC parts are traceable
