MBR20200 SCHOTTKY RECTIFIER

MBR20200 Description

Technical Data Data Sheet N1091, Rev.A MBR20200 SCHOTTKY RECTIFIER MBR20200 TO-220AC .

MBR20200 Features

* 150 C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb

MBR20200 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current

📥 Download Datasheet

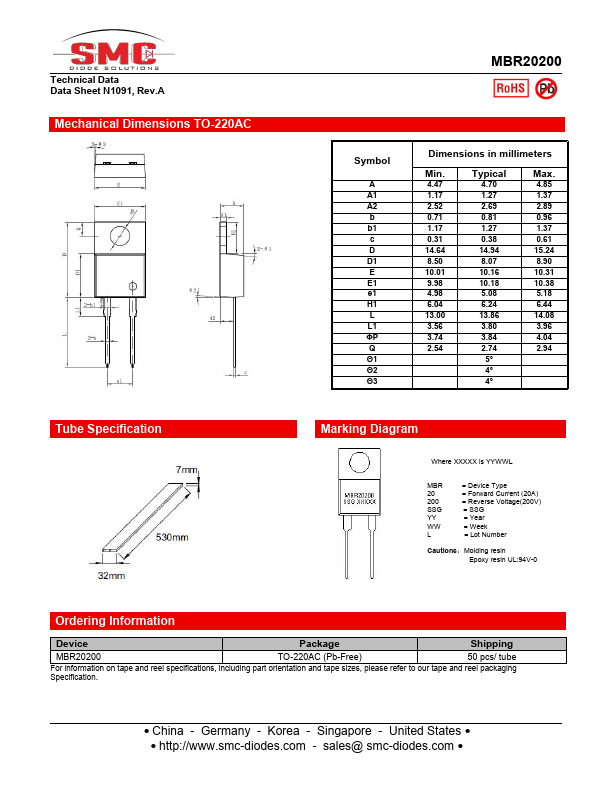

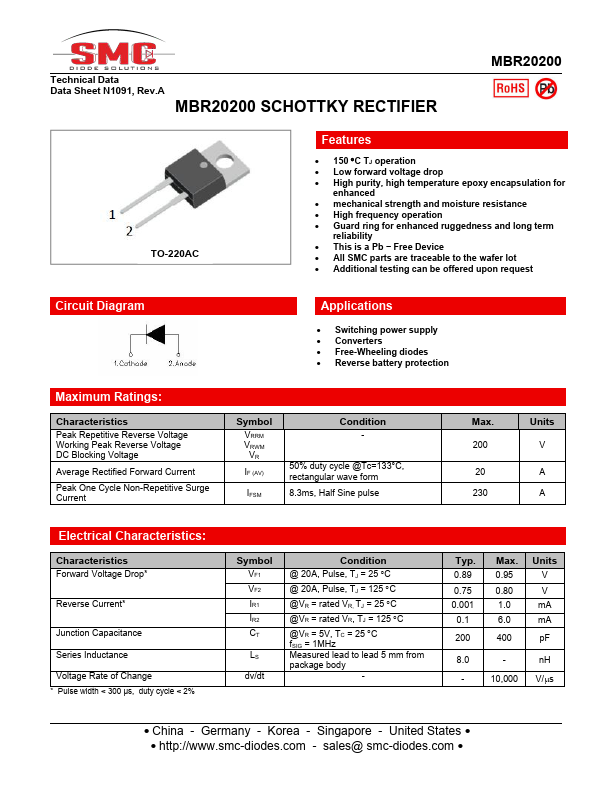

Preview of MBR20200 PDF

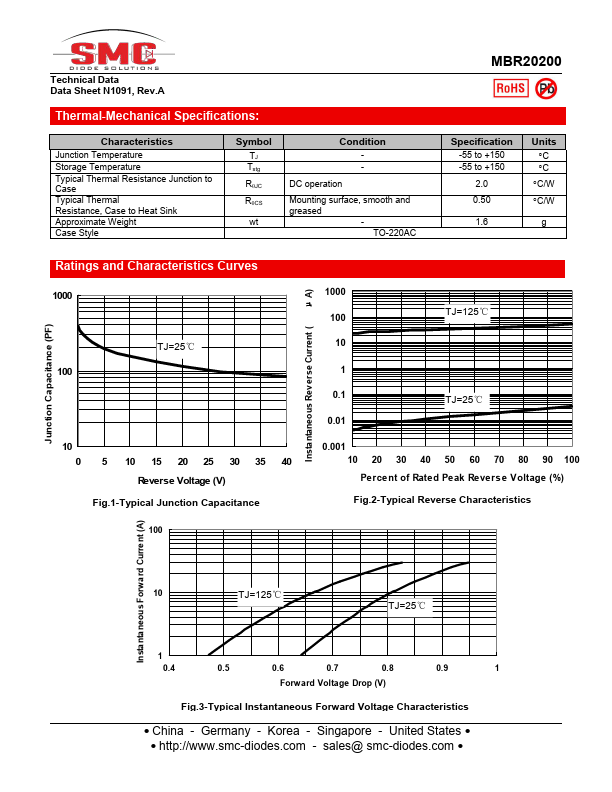

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR20200
Manufacturer
SMC Diode
File Size
171.00 KB
Datasheet
MBR20200-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
