MBR30100 SCHOTTKY RECTIFIER

MBR30100 Description

Technical Data Data Sheet N2223, Rev.- MBR30100 SCHOTTKY RECTIFIER MBR30100 TO-220AC .

MBR30100 Features

* 150 C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Terminals finish:100% Pure

MBR30100 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Center tap configuration Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle

📥 Download Datasheet

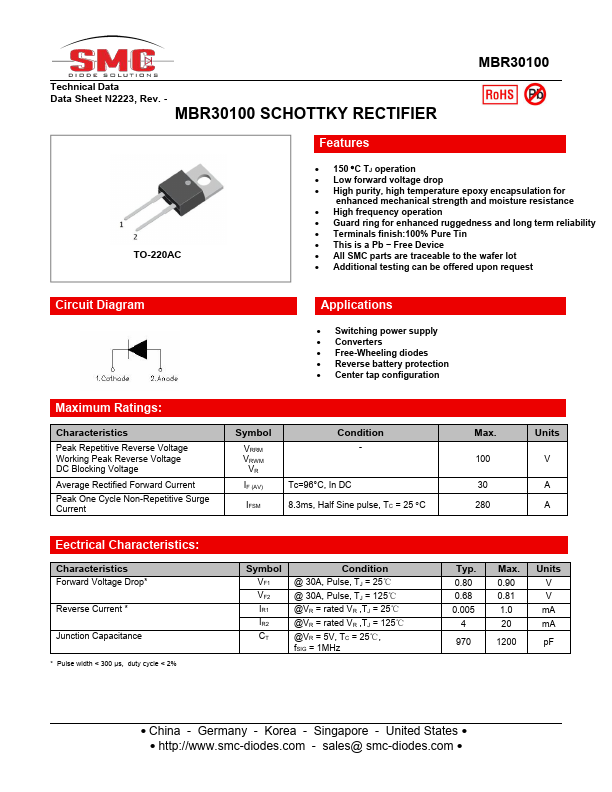

Preview of MBR30100 PDF

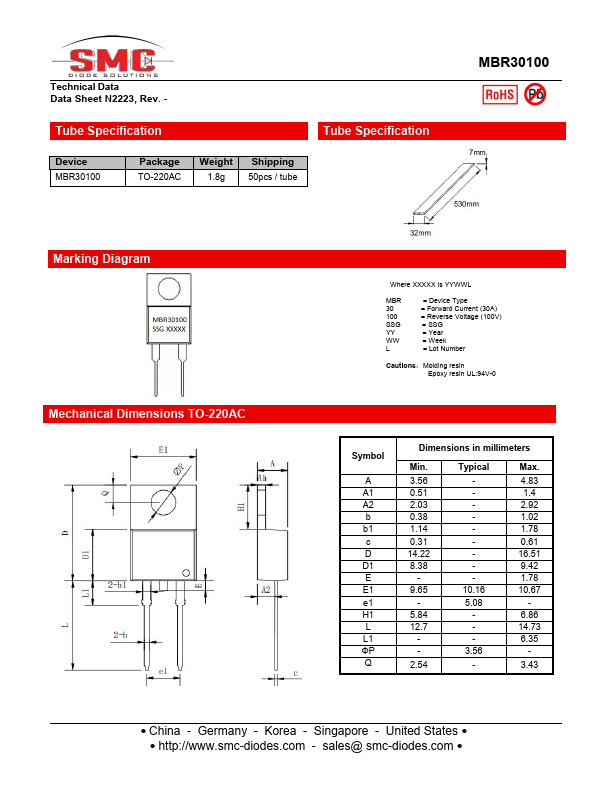

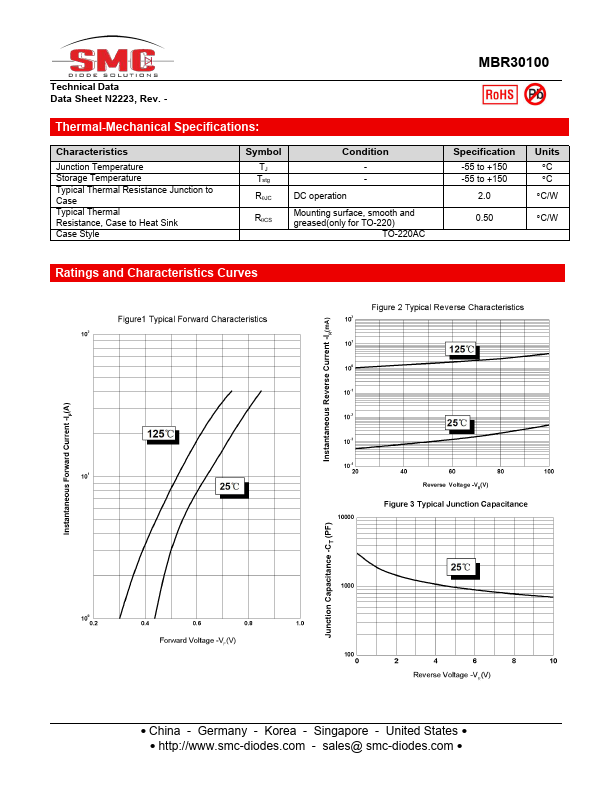

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR30100
Manufacturer
SMC Diode
File Size
280.34 KB
Datasheet
MBR30100-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
