RS1AL 1.0AMP SURFACE MOUNT FAST RECOVERY RECTIFIER

RS1AL Description

RS1AL THRU RS1ML Technical Data Data Sheet N1935, Rev.- RS1AL THRU RS1ML SINGLE PHASE 1.0AMP SURFACE MOUNT FAST RECOVERY RECTIFIER SOD-123FL Circuit.

RS1AL Features

* Glass passivated device

RS1AL Applications

* Low reverse leakage
* Metallurgically bonded construction
* High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
* Plastic material-UL flammability 94V-0
* This is a Halogen Free Device
* All SMC parts are traceable to th

📥 Download Datasheet

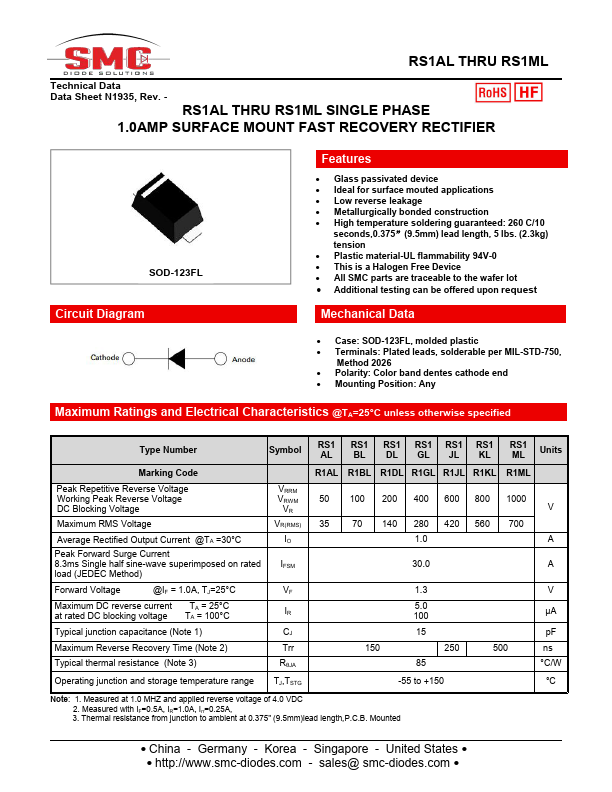

Preview of RS1AL PDF

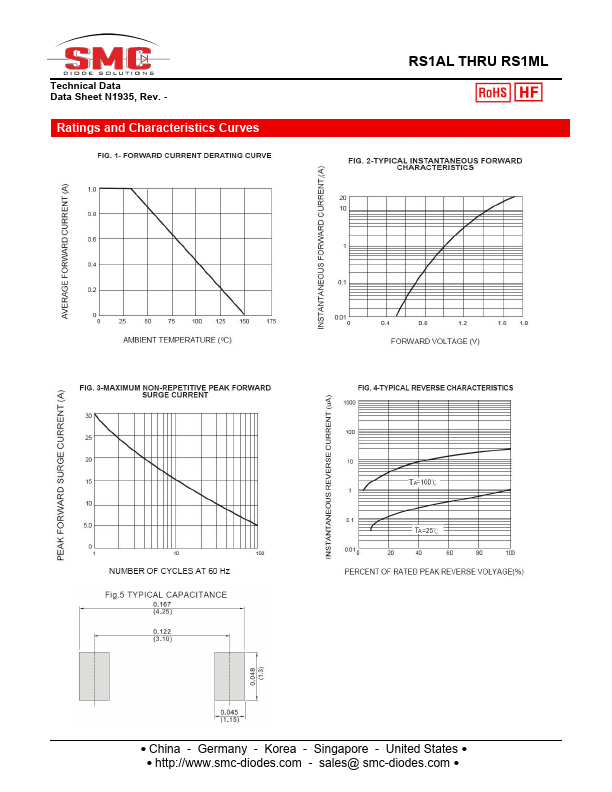

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1AL
Manufacturer
SMC Diode
File Size
338.94 KB
Datasheet
RS1AL-SMCDiode.pdf
Description
1.0AMP SURFACE MOUNT FAST RECOVERY RECTIFIER
