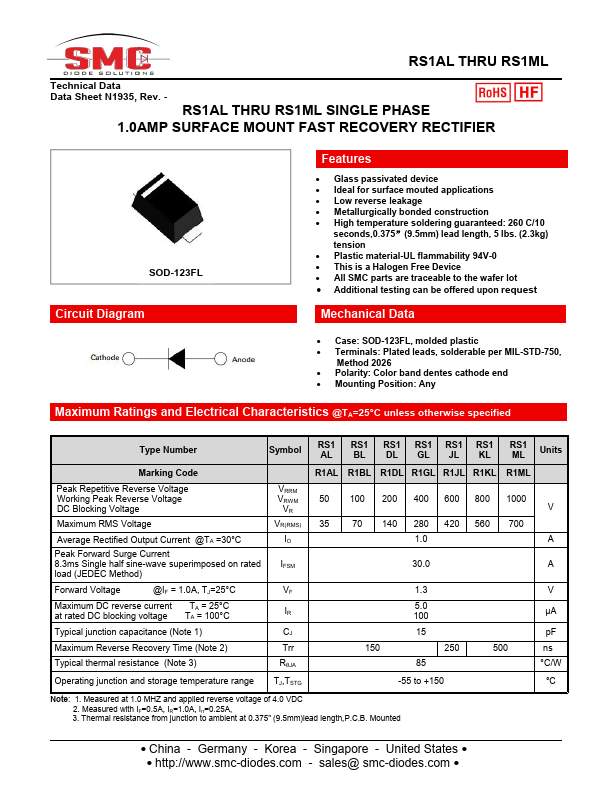

RS1DL
Features
- Glass passivated device
- Ideal for surface mouted applications
- Low reverse leakage
- Metallurgically bonded construction
- High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
- Plastic material-UL flammability 94V-0
- This is a Halogen Free Device
- All SMC parts are traceable to the wafer lot
- Additional testing can be offered upon request

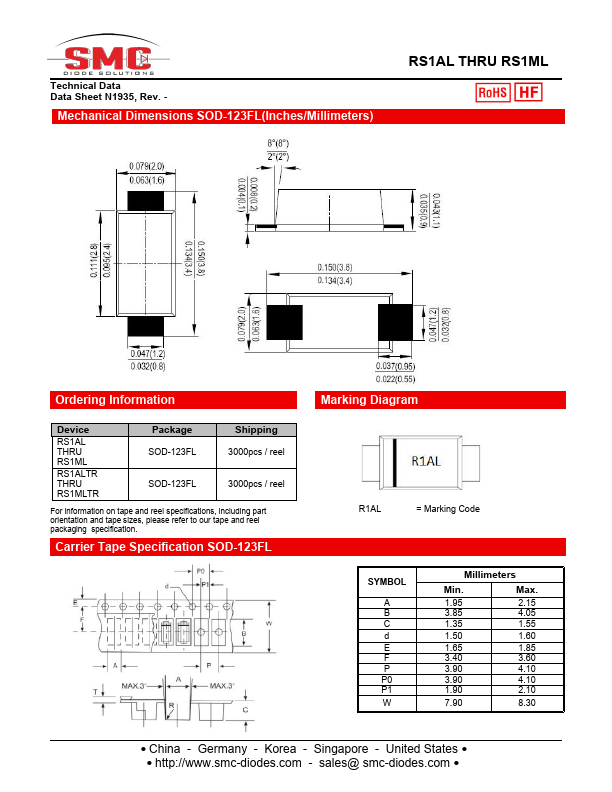

- Mechanical Data
- Case: SOD-123FL, molded plastic
- Terminals: Plated leads, solderable per MIL-STD-750,
Method 2026
- Polarity: Color band dentes cathode end
- Mounting Position: Any

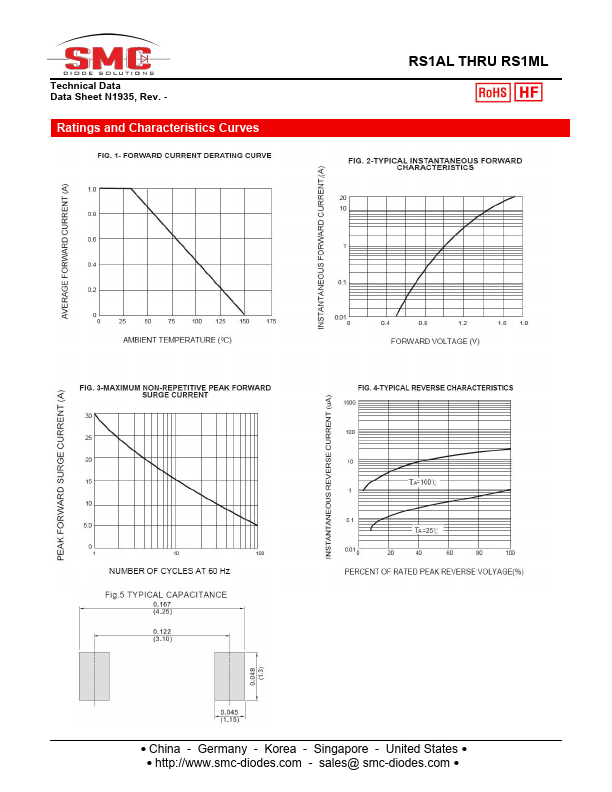

Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified
Type Number
Symbol
RS1 AL
RS1 BL
RS1 RS1 RS1 RS1 DL GL JL KL
RS1 ML
Units
Marking Code
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
Maximum RMS Voltage
Average Rectified Output Current @TA =30°C
Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on...
