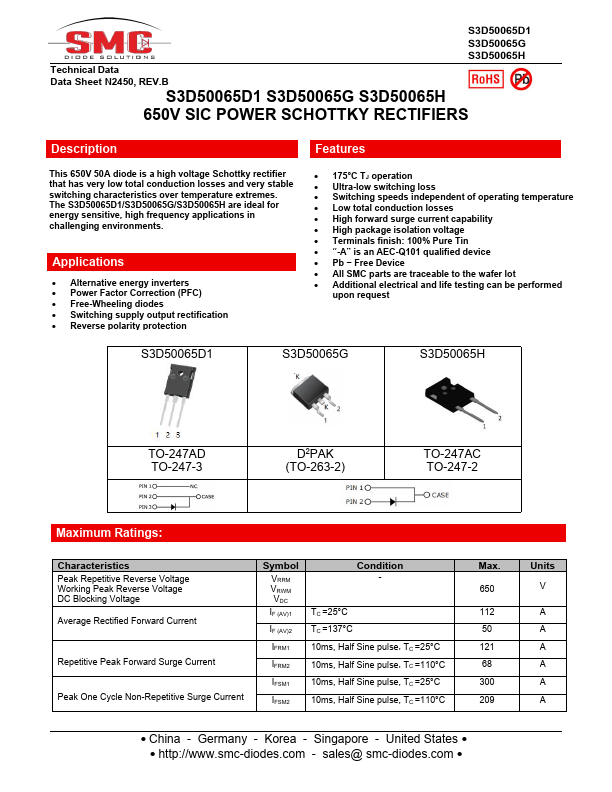

Description
This 650V 50A diode is a high voltage Schottky rectifier that has very low total conduction losses and very stable switching characteristics over temperature extremes.
Alternative energy inverters
Power Factor Correction (PFC)
Free-Wheeling diodes
Switching supply output rectification
Reverse polarity protection
Features
- 175°C TJ operation.
- Ultra-low switching loss.
- Switching speeds independent of operating temperature.
- Low total conduction losses.
- High forward surge current capability.
- High package isolation voltage.
- Terminals finish: 100% Pure Tin.
- “-A” is an AEC-Q101 qualified device.
- Pb.
- Free Device.
- All SMC parts are traceable to the wafer lot.
- Additional electrical and life testing can be performed
upon request
S3D50065D1
S3D50065G
S3D5006.
