S4D30120H2 - 1200V SIC POWER SCHOTTKY RECTIFIER

Datasheet Summary

Description

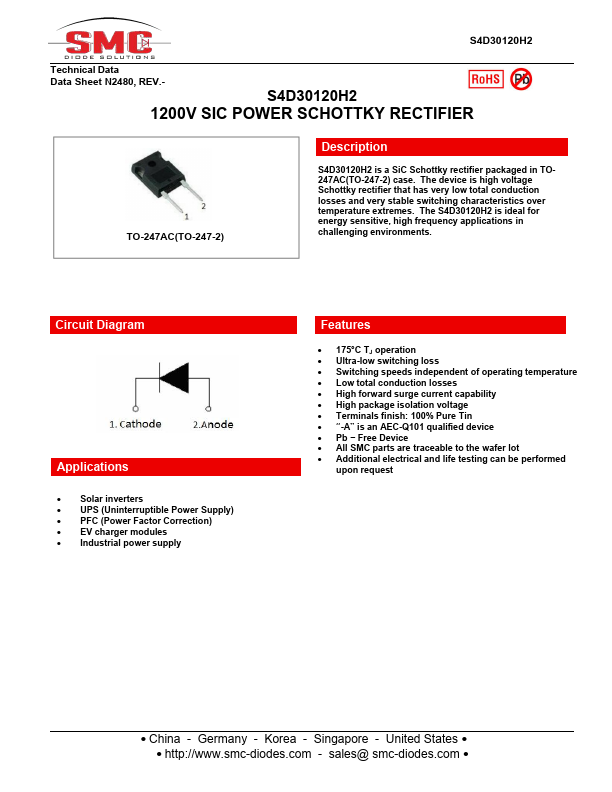

S4D30120H2 is a SiC Schottky rectifier packaged in TO247AC(TO-247-2) case.

The device is high voltage Schottky rectifier that has very low total conduction losses and very stable switching characteristics over temperature extremes.

Features

175°C TJ operation.
Ultra-low switching loss.
Switching speeds independent of operating temperature.
Low total conduction losses.
High forward surge current capability.
High package isolation voltage.
Terminals finish: 100% Pure Tin.
“-A” is an AEC-Q101 qualified device.
Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional electrical and life testing can be performed upon request.
